Mikrokopter GPS-Cover 64

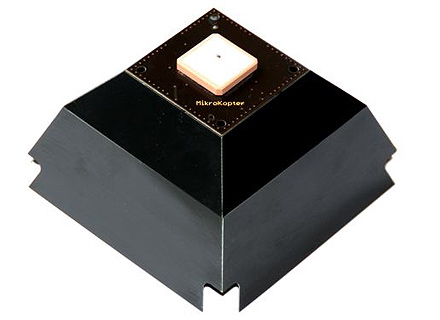

The Mikrokopter GPS-Cover is made from PCB plate and attached directly to the MK GPS board. The side panels are easily joined together using solder. This also acts as the ground plane for the GPS antenna - increasesing the GPS reception. The signal to noise ratio for the rest of the electronics in MikroKopter is increased. Another positive effect is to protect the altitude sensor against the air pressure of the rotating propellers.

Technical Data:
 • PCB-Material: 1 layer, 0.5 mm thick
 • Soldermask on both sides Black
 • Dimensions of the finished hood: 50x50mm to 120x120mm with a height of 64mm
 • Weight: 35g

Included parts:
 • 8 PCB parts to construct the sides of a cap

Advice
 • The MK GPS board (order separately) is the 'cap' - alternative cover part also available separately
 • In the side panels LEDs can be mounted
 • The hood is designed for quadcopters. Other variants will not match.
