ESky Belt-CP CNC Alloy Tail Assembly:

How to put together the Belt-CP Alloy Tail Gear Box

Parts required:

Belt-CP Alloy Tail Gear Box Set - EK5-0205

Step by step guide...

Note: The CNC alloy head requires that you use thread lock. If you don’t you will find the vibration on the rear gear will shake the tail apart.	The component parts laid out with the existing parts you'll need from your Belt-CP.
1. Take the main boom tube, the right side frame, 2 small screws, 1 x large screw and the L bracket	2. Dab thread lock on the screw and install as shown, the large screw fits through the L bracket, the side frame and boom tube.
3. Install the small alloy tubes to the side frame.	4. As Shown here, with 2 Medium size screws.
5. Install the Tail Shaft through the side frame, then place on the Boom of the Belt-CP.	6. Make sure its firmly down onto the boom, then thread the belt through and place on the tail shaft as shown.
7. Fit the tension wheel to the middle tube, make sure it is seated correctly and the belt is within the groves. Next install the left hand side frames again making sure you add thread lock to the silver screws and making sure they are tight.	8. Now to installing the control linkage and the blade clamp. The long black allen head screw is required here.
9. Install the screw up through the control arm and screw into the last hole at the end of the Alloy arm, screw in but not to tight make sure the arm can move freely and make sure this is thread locked.	10. Slide the control linkage down the tail shaft and then finally the blade clamp.

Note: There is a notch in the shaft for the blade clamps make sure when attaching the clamps
the grub screw is within grove, this prevents the clamps from coming loose and sliding off the
shaft.

Final Steps:
2 x Medium Black Screws
1 x Small Black Screw
1 x Vertical Fin

Install the small black allen headed screw into the hole on the right hand side - this clamps the
alloy tail box onto the boom - make sure not to over tighten.

Before tightening make sure the tail box is level with the main frame of the helicopter. Lift up the boom look down it and adjust the level then finally tighten. Take the 2 medium size black screws and fix the vertical fin to the Tail box as shown:

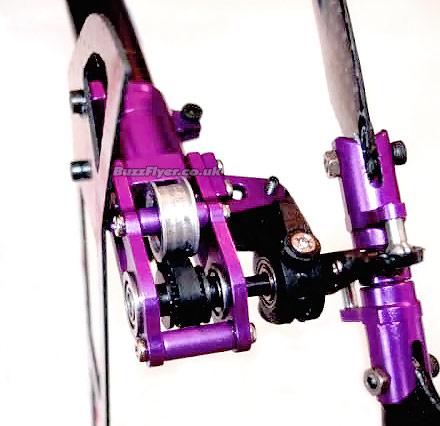

The new CNC alloy tail box is now complete. Make a final check to ensure the belt is tight before flying. If it's too loose, un-screw the boom clamp and move the tail away from the helicopter to tighten.

Note: Don’t over tighten the belt as this will cause the gear to bind. Also, if this is too tight, loss of power and battery time is affected. The tail must move nice and freely.
