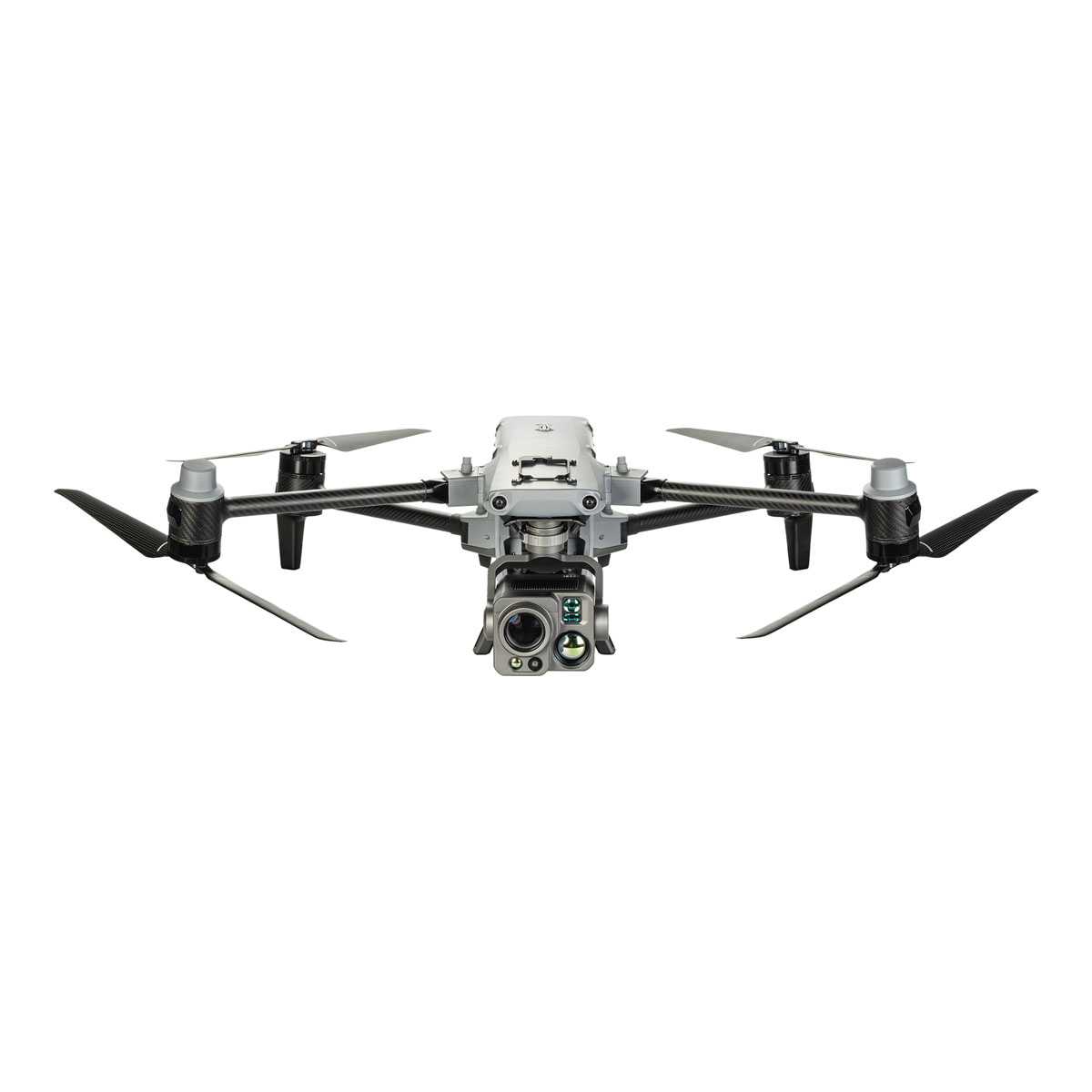

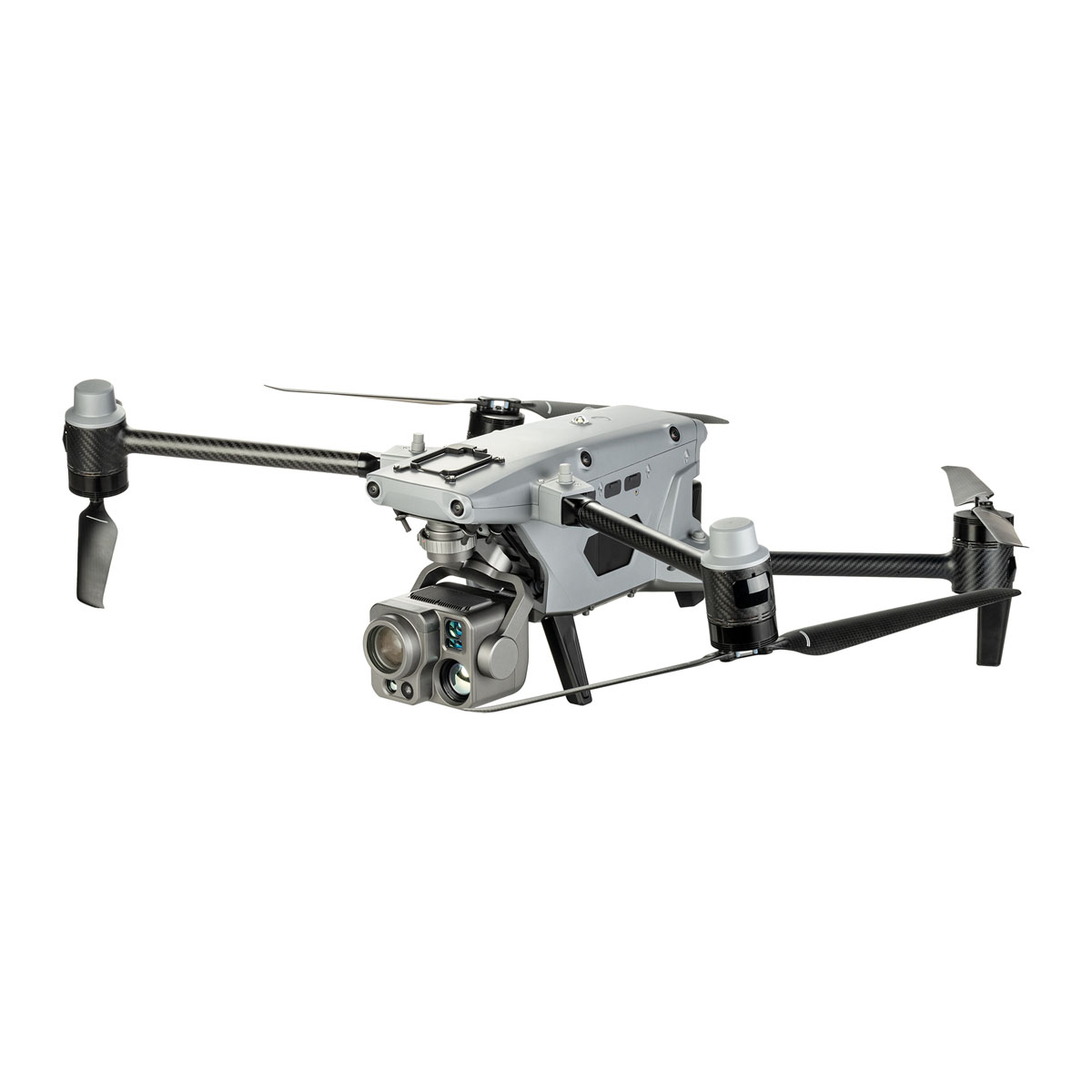

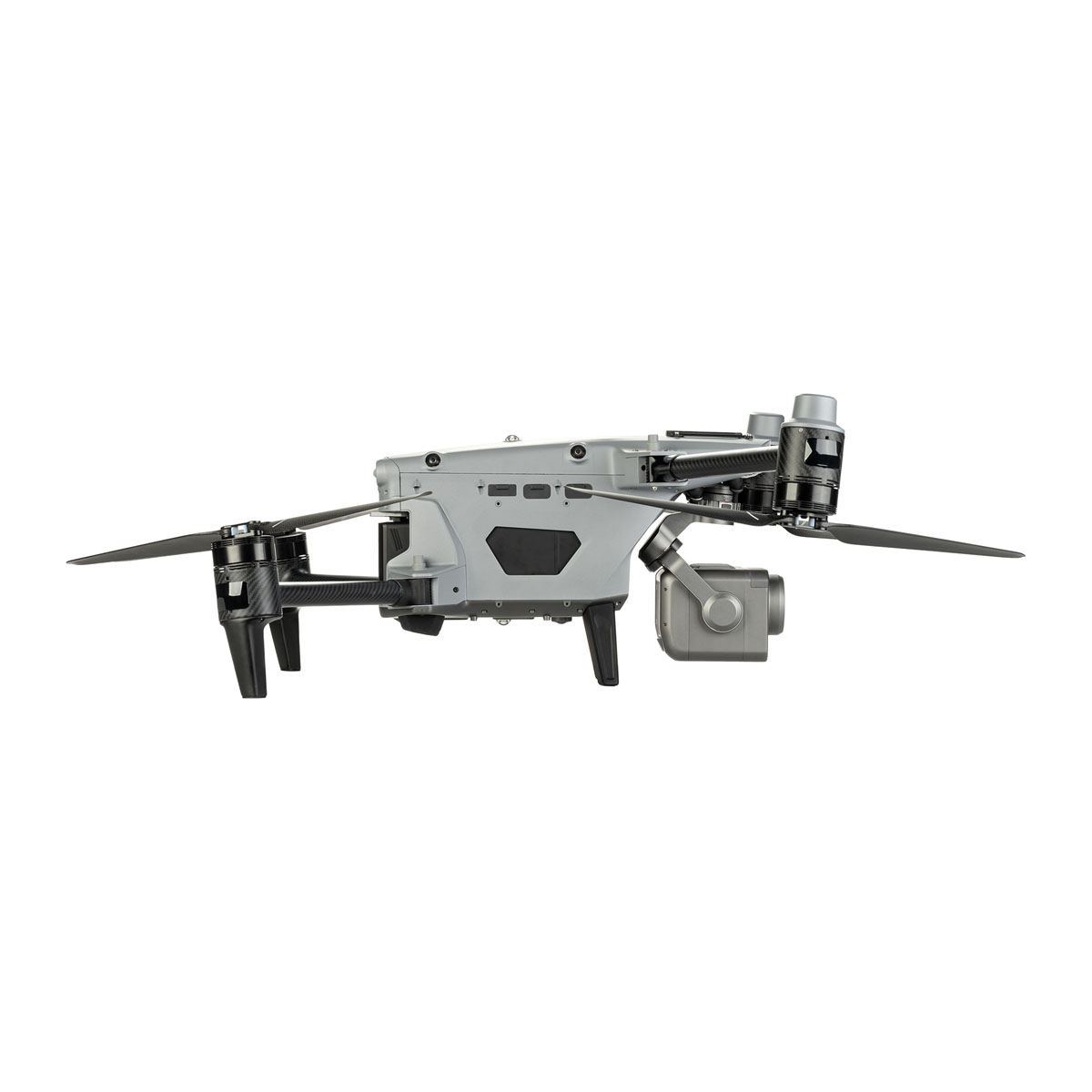

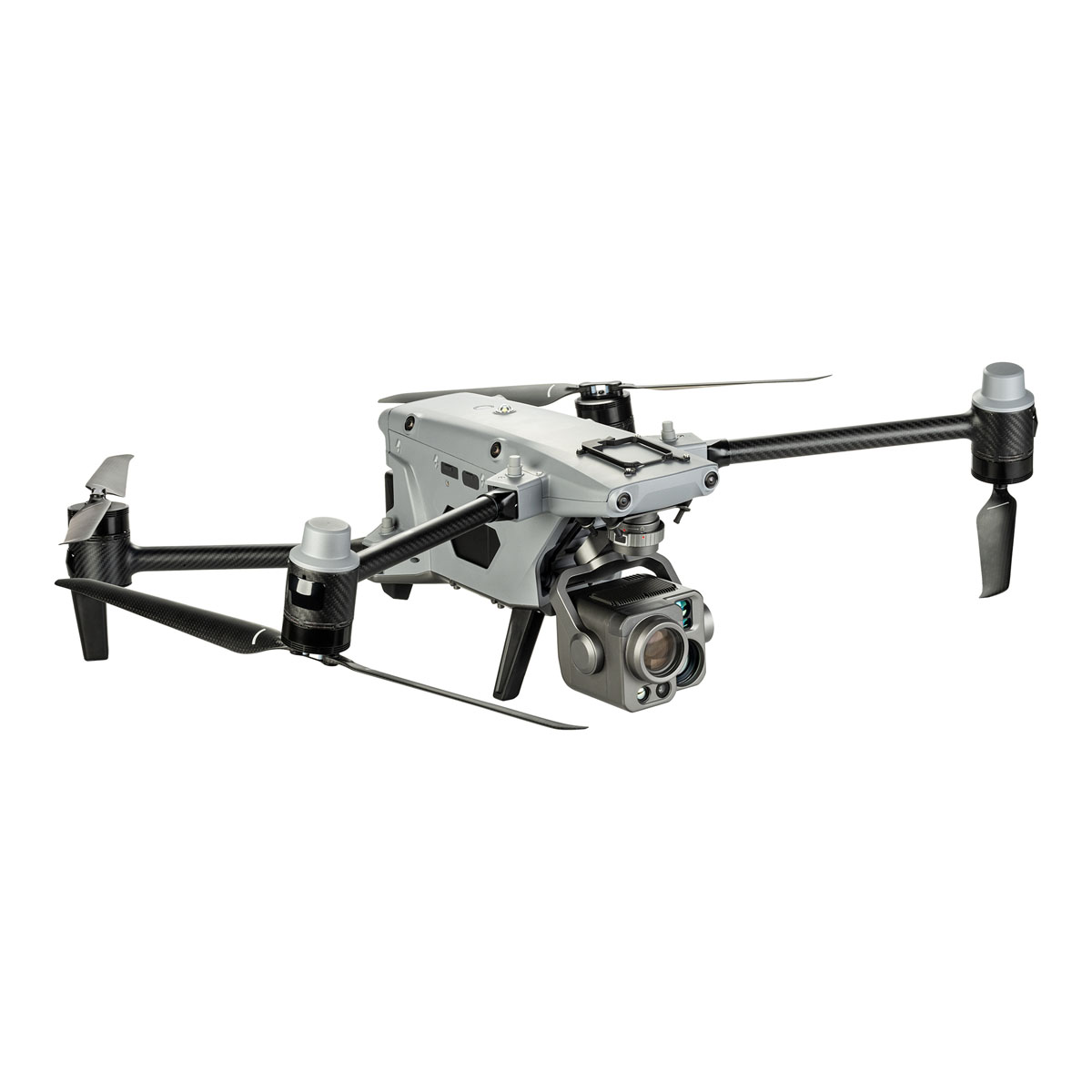

AUTEL ALPHA

Autel Alpha is an intelligent industrial drone for multi-purpose, boasting significant enhancements in autonomous flight capabili-

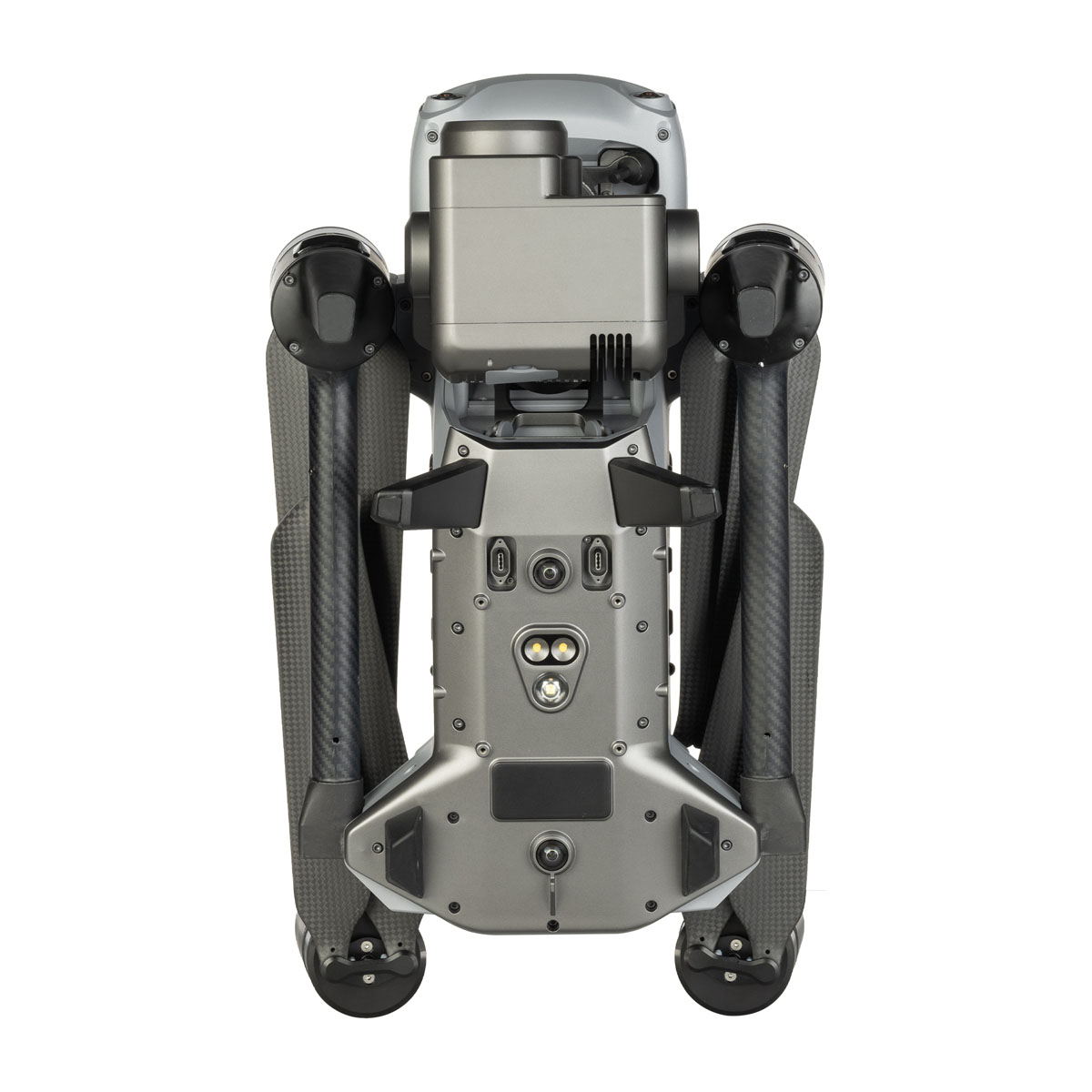

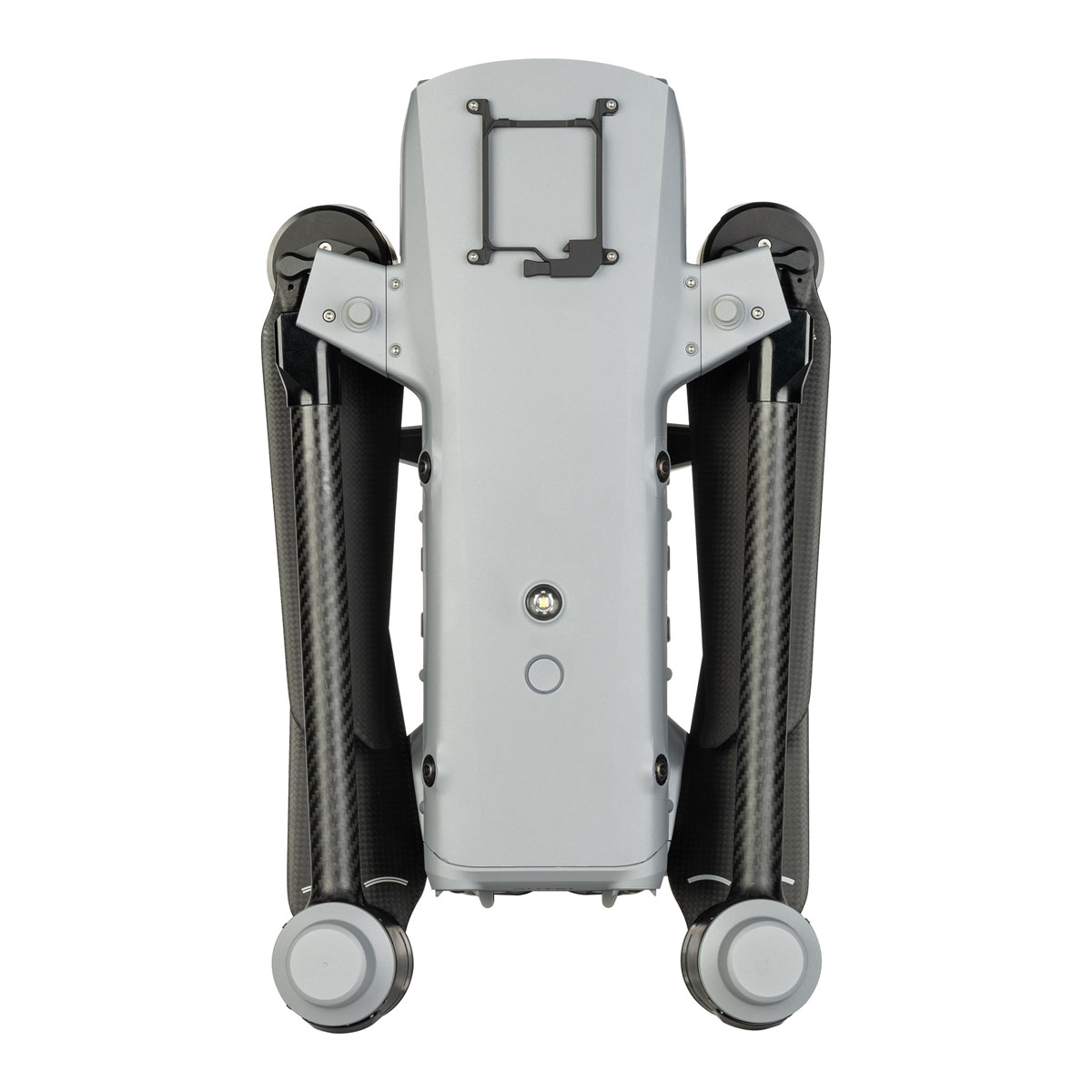

ties, anti-interference capabilities, obstacle avoidance capabilities, transmission technology, and battery systems. With a foldable

design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control

within millimeters when conducting the missions. The DG-L35T gimbal integrates a 560x super hybrid zoom camera, dual

thermal imaging cameras, ultra-sensitive starlight night vision camera, and laser rangefinder, providing more professional and

comprehensive solutions for public safety, energy inspections, emergency management.

Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), a 4K 35x night vision Zoom camera, a wide-angle camera and a laser rangefinder.

Supports 4K 35x optical zoom and 560x max hybrid zoom with clear observation up to 5 miles away. Efficiently empower applications such as long-distance inspection.

Equiped with a 56x hybrid zoom, dual thermal imaging lenses, with a resolution of 640x512. Utilizing a 13mm short-focus lens and a 45mm long-focus lens, catering to both wide and global view.

The wide camera has an effective pixel count of 48 million, supporting a maximum photo resolution of 8000x6000 and a video resolution of 4000x3000 at 25 frames per second, meeting the needs of various shooting scenarios.

Tap a target to obtain the coordinates and altitude rapidly from up to 1.24 miles away.

Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.

With integrated A-Mesh technology, the drone can establish networks between drones and controllers, supporting various working modes such as "single-controller multiple drones" and "master-slave dual control". Even in scenarios with long distances and obstacles, such as mountains, buildings, or areas without public network, it can achieve multi-device networking, enabling drone-to-drone autonomous communication, connection, and collaboration.

Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

By integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision + 6-direction millimeter-wave radar, the drone is equipped with 720° omnidirectional perception and obstacle avoidance capabilities. Additionally, it supports nighttime obstacle avoidance for flight safety.

Redefines proficiency with its robust platform and all weather design.

Weather rating: IP55

Wind Resistance: 27 Mph

Service Ceiling: 23,000 ft*

Operation Temperature: -20℃ to 50℃

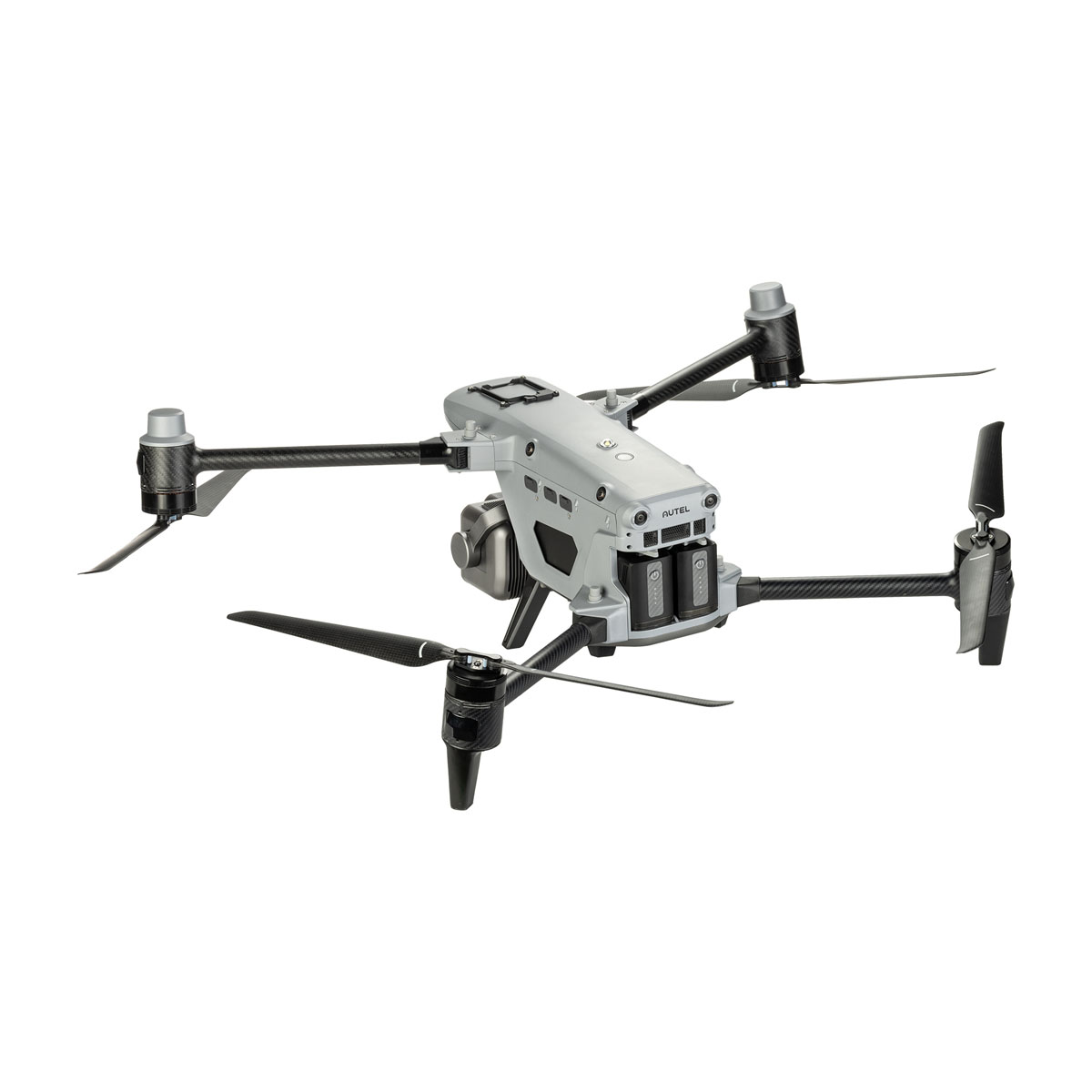

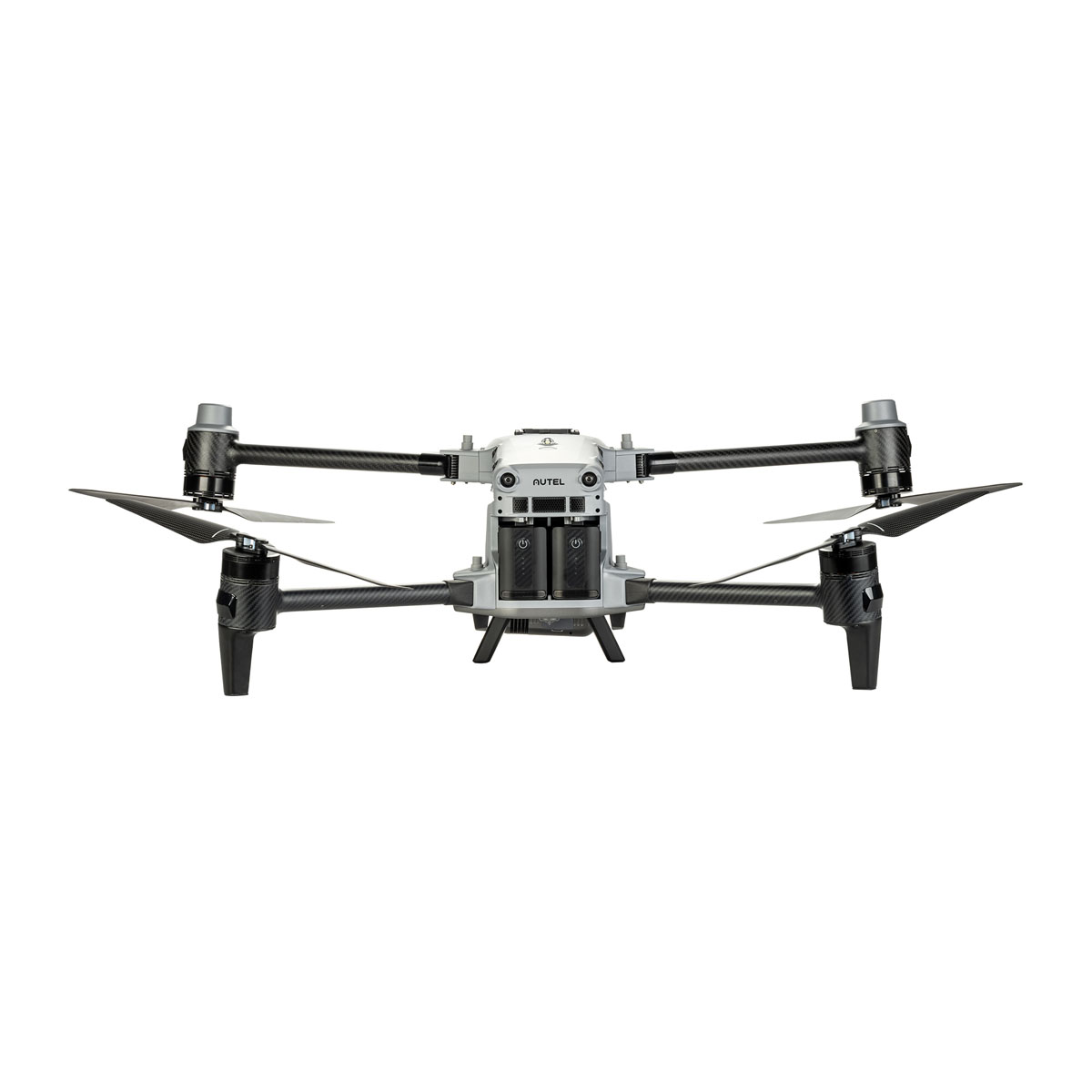

With a dual-battery design, supporting hot-swappable batteries, providing a runtime up to 40 minutes, enabling seamless and efficient operations.

The aircraft features three mounting interfaces: mounting interfaces. The Autel PSDK developer platform is open for creating a new industry ecosystem such as searchlights, loudspeakers, 4G/5G modules, and more.

Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.

Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
