ESky Honey Bee Transmitter Guide:

A guide to the standard transmitters of the ESky Honey Bee and CP3.

  • ESky Honey Bee Transmitter
  • ESky Honey Bee CP3 Transmitter

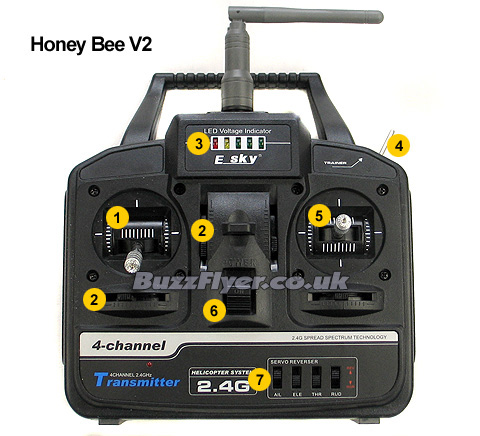

How to ESky Transmitter guide
  1. LEFT CONTROL STICK (Throttle & Rudder) - UP to increase rotor speed and apply positive pitch to main blades - DOWN to decrease rotor speed and apply negative pitch. Push LEFT to turn helicopter nose left and push RIGHT to turn helicopter nose right.
  2. TRIMS - one for each control axis - for fine tuning main controls (trimming).
  3. LED transmitter voltage Indicator
  4. TRAINER SWITCH - for switching control between two connected transmitters.
  5. RIGHT CONTROL STICK (Elevator & Aileron) - Up to make the helicopter tilt forward. Pull it back to make the helicopter tilt backward. Move it left to make the helicopter tilt left (and move sideways) and right to tilt right.
  6. POWER ON/OFF switch (applies to transmitter only)
  7. REVERSE SWITCHES - to control direction of movement of servos connected to the receiver.

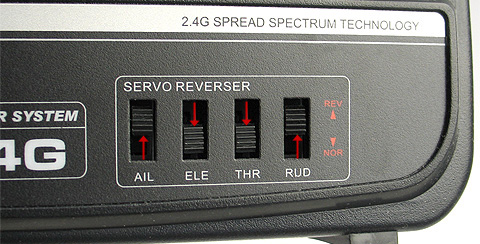

0406a switches

Correct positions of the transmitter servo reverse switches for standard setup on the Honey Bee

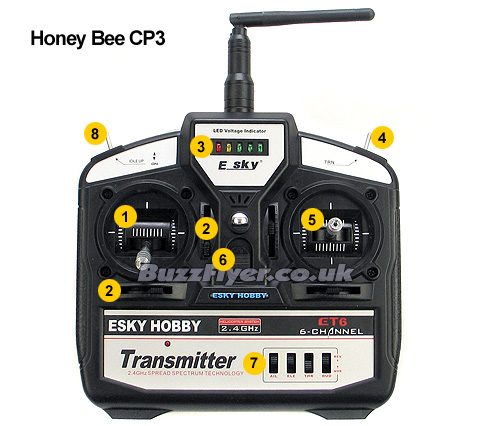

honey bee cp3 transmitter

  1. LEFT CONTROL STICK (Throttle & Rudder) - UP to increase rotor speed and apply positive pitch to main blades - DOWN to decrease rotor speed and apply negative pitch. Push LEFT to turn helicopter nose left and push RIGHT to turn helicopter nose right.
  2. TRIMS - one for each control axis - for fine tuning main controls (trimming).
  3. LED transmitter voltage Indicator
  4. TRAINER SWITCH - for switching control between two connected transmitters.
  5. RIGHT CONTROL STICK (Elevator & Aileron) - Up to make the helicopter tilt forward. Pull it back to make the helicopter tilt backward. Move it left to make the helicopter tilt left (and move sideways) and right to tilt right.
  6. POWER ON/OFF switch (applies to transmitter only)
  7. REVERSE SWITCHES - to control direction of movement of servos connected to the receiver.
  8. IDLE UP - Normal or Stunt 3D mode (towards back is Normal).

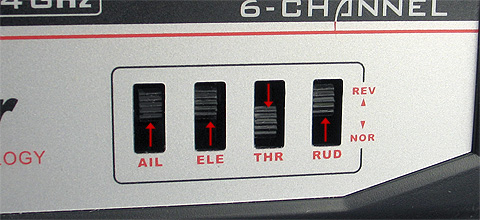

esky cp3 reverse switches

Correct positions of the transmitter servo reverse switches for standard setup on the Honey Bee CP3.


Lama, Comanche and Dauphin Transmitter:

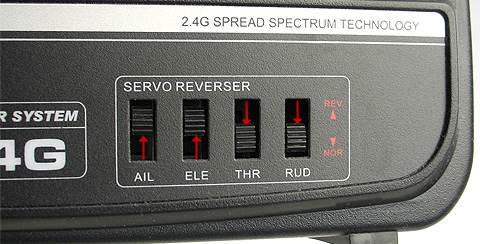

lama reverse switches

Correct positions of the transmitter servo reverse switches for standard setup Lama, Comanche and Dauphin.


ESky 0406A Guide
