RC Helicopter Simulators

The Fantastic New PhoenixRC Sim

The new PhoenixRC RC flight simulator for all types of radio control aircraft and all levels of RC pilot - from beginner to advanced. Stunning levels of detail of both model and background. Intuitive, easy-to-use yet in-depth graphical interface. Incredibly powerful flight recording and playback tools. Over 50 helicopter and aircraft models. Works with all ESky transmitters. Now available for only £79.95 - including FREE ESky adapter. Buy it here.

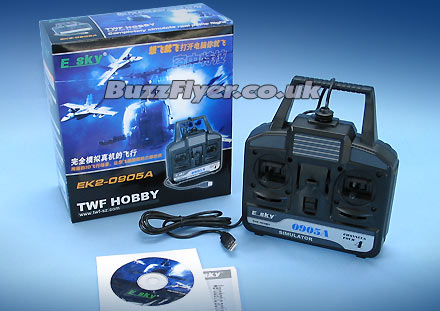

The ESky Simulator control unit

The dedicated 4 channel ESky sim controller offers the ideal way to get to grips with flying RC helicopters. The unit exactly replicates an actual transmitter. A little practice every day on this sim will enable you to become familiar with the controls before flying your own model helicopter. It plugs directy into the USB port of your PC or Mac and does NOT require batteries. Now available for only £24.95. Buy it here.

You can download the Honey Bee / CP2 model for FMS here.

FMS Honey Bee

There are hundreds of models and landscapes availabe for FMS on the Web - including co-axial RC helicopters! Click here to download the Micro 47

Simply unzip the contents into your C:\Program Files\FMS\Model folder.

The ESky USB Sim Lead

The ESky sim cable (also known as the 'soft dog') allows you to plug your own 4 channel ESky transmitter directly into your computer. By downloading the free software you can achieve the full sim experience within minutes. Note: it will require that your transmitter is switched on while in use. This cable comes as part of our Robins 22 and Honey Bee Deluxe deals. We now also have a sim cable for the CP2 transmitter!

Installation and Set-up Guide

The FMS software can be downloaded here: FMS RC Simulator

Controller Unit Version:

Install the FMS software following the on screen instructions
Plug cable into your USB port.
Wait for windows to detect and show 'installing new hardware' message.
When complete, unplug the USB cable then re-insert.
Open the FMS program.
Go to Controls > Analogue Control > Joystick interface > Mapping/Calibration
Set the mapping as shown below

Click 'Calibrate' button and move sticks in circular motion - then centre them.
Click Finish and Ok
Choose a helicopter model from the models menu and start flying!

The left stick should now move the heli up/down and turn left/right (ie. stick
pulled left moves nose left - forward stick moves heli upwards).

The right stick should tilt the heli side to side and back/forward (ie.
forward tilts nose down - pulling stick right tilts heli to right).

(These settings apply to mode 2 transmitter set-ups)

USB Lead Version:

Install the FMS software following the on screen instructions
Switch on transmitter (with batteries loaded).
Plug cable into back of Tx and into your USB port.
Wait for windows to detect and show 'installing new hardware' message.
When complete, unplug the USB cable then re-insert - the red light on plug should now flash rapidly.
Open the FMS program.
Go to Controls > Analogue Control > Joystick interface > Mapping/Calibration
Set the mapping as shown below (for Honey Bee transmitter).

If using the Robins 22 transmitter: NO Inv boxes are ticked.
If using the CP2 sim cable: Tick channel 3 Inv boxes only.
Click the 'Calibrate' button and move sticks in circular motion - then centre them.
Click Finish and Ok
Choose a helicopter model from the models menu and start flying!

Notes:

You can reduce battery drain by removing the crystal (X'tal) - just make sure you remember to put it back!

In some cases you may need to close the program and/or unplug and re-plug the cable after initial setup before the controller will function. If this does not have the desired effect you may need to reboot your PC.

To run FMS on Windows Vista click here

Mac users can use the AlphaMacSoftware sim (www.alphamacsoftware.com) with these units.

How to enable FMS to run on Windows Vista

Note: We have used and tested these downloads without any problem. However, anyone downloading and using these files does so at their own risk. We do not accept responsibility for any adverse effects or loss that may occur from their installation. Sorry, but we cannot offer computer technical support.
