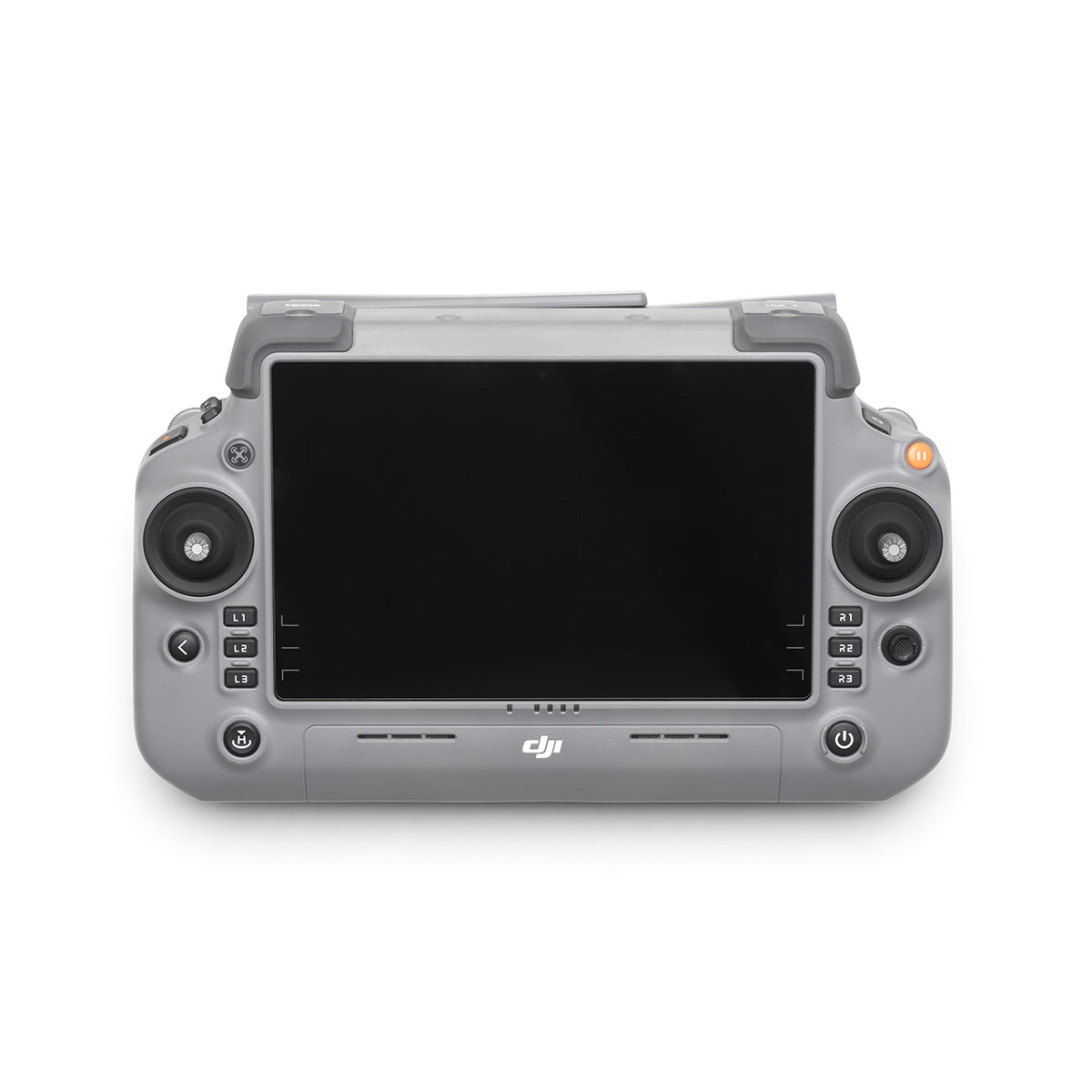

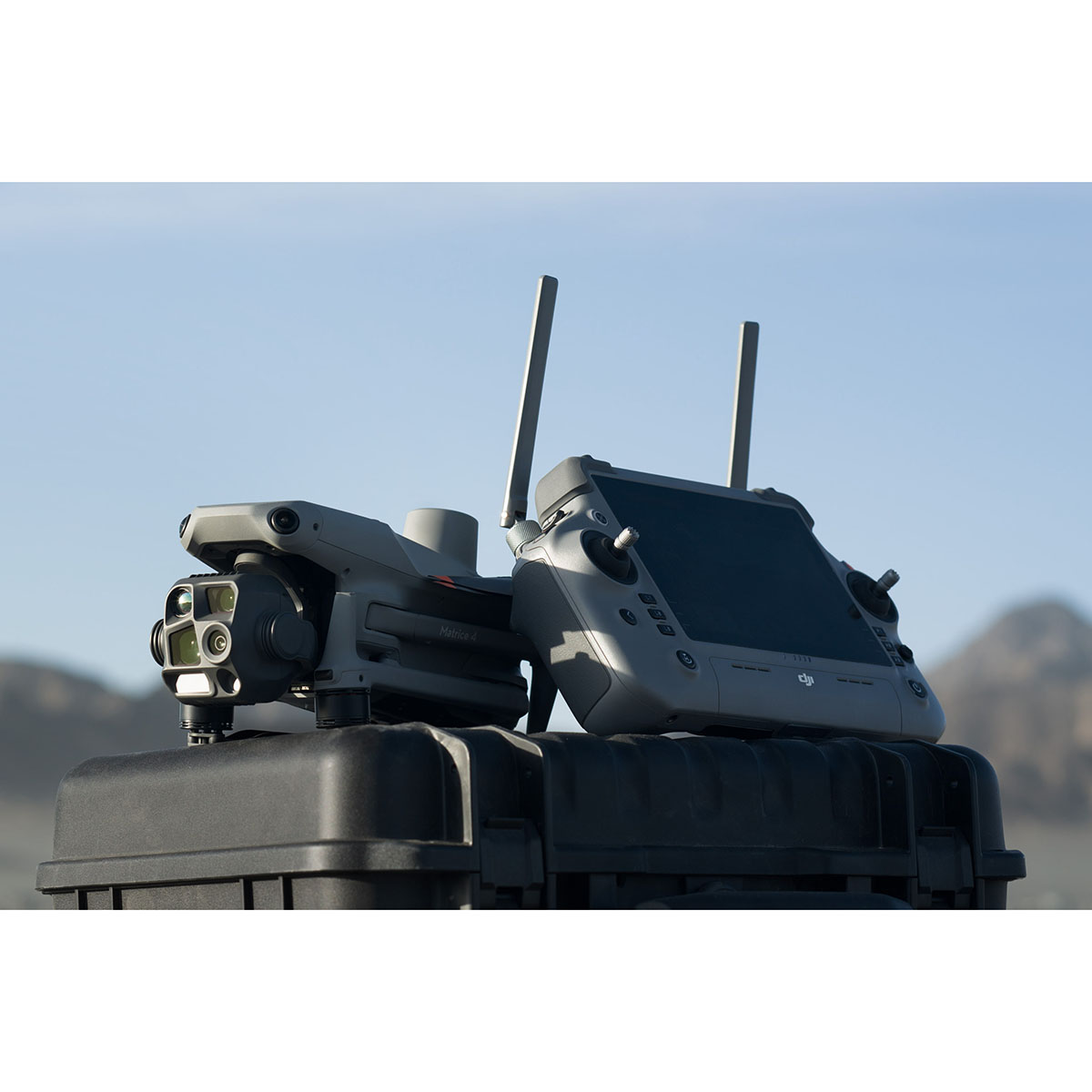

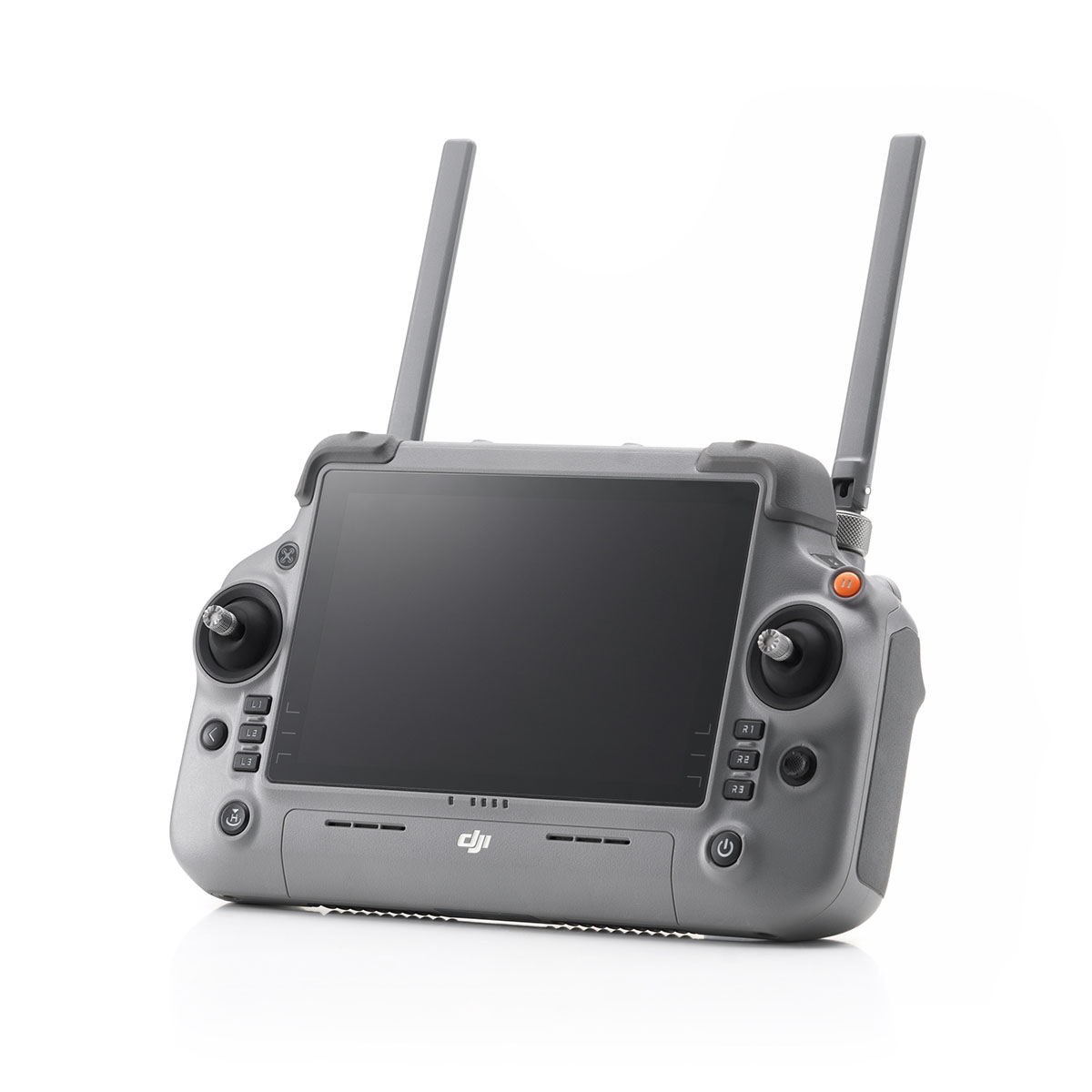

DJI RC Plus 2 Enterprise is equiped with a new high-bright display, ensuring clear visibility even under strong sunlight. The controller has an IP54 protection rating and operates in temperatures from -20°C to 50°C (-4°F to 122°F). With the powerful O4 Enterprise video transmission, a built-in high-gain antenna array, and support for both SDR and 4G hybrid transmission, it provides a stable and smooth video feed in both urban and mountainous environments.
Highlights
High-bright display. IP54 protection rating. O4 Enterprise video transmission. Support for both SDR and 4G hybrid transmission.
Tips
1. Download and read the safety guidelines and user manual of the compatible aircraft from the DJI official website before using for the first time.
2. Stay alert when using the remote controller to control an Unmanned Aerial Vehicle (UAV). Carelessness may result in serious harm to yourself and others.
3. Make sure to protect the remote controller during use or transportation. Avoid heavy impacts that may damage the touchscreen, joysticks, or other components.
In The Box
Remote Controller ×1
Specifications
OcuSync
Operating Frequency Range* : 5.150-5.250 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP)
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (FCC/CE)
5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
Wi-Fi
802.11 a/b/g/n/ac/ax
Operating Frequency Range*: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP)
2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)
5.8 GHz ＜26 dBm (FCC/SRRC), ＜14 dBm (CE)
Bluetooth
Bluetooth 5.2
Working frequency: 2.4000-2.4835 GHz
Transmitter Power (EIRP): <10 dBm
General
Model: TKPL2
Battery Type: Li-ion (6500 mAh @ 7.2 V)
Chemical System: LiNiCoAlO2
It is recommended to use USB-C chargers with maximum rated power of 100W
Rated Power: 12.5 W
GNSS: GPS + Galileo + BeiDou
Video Output Port: HDMI Type-A
Operating Temperature: -4° to 122° F (-20° to 50° C)
Storage Temperature
Within one month: -22° to 113° F (-30° to 45° C)
One to three months: -22° to 95° F (-30° to 35° C)
Three months to one year: -22° to 86° F (-30° to 30° C)
Charging Temperature: 41° to 104° F (5° to 40° C)
* Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.
Compatibility
DJI Matrice 4 Series
