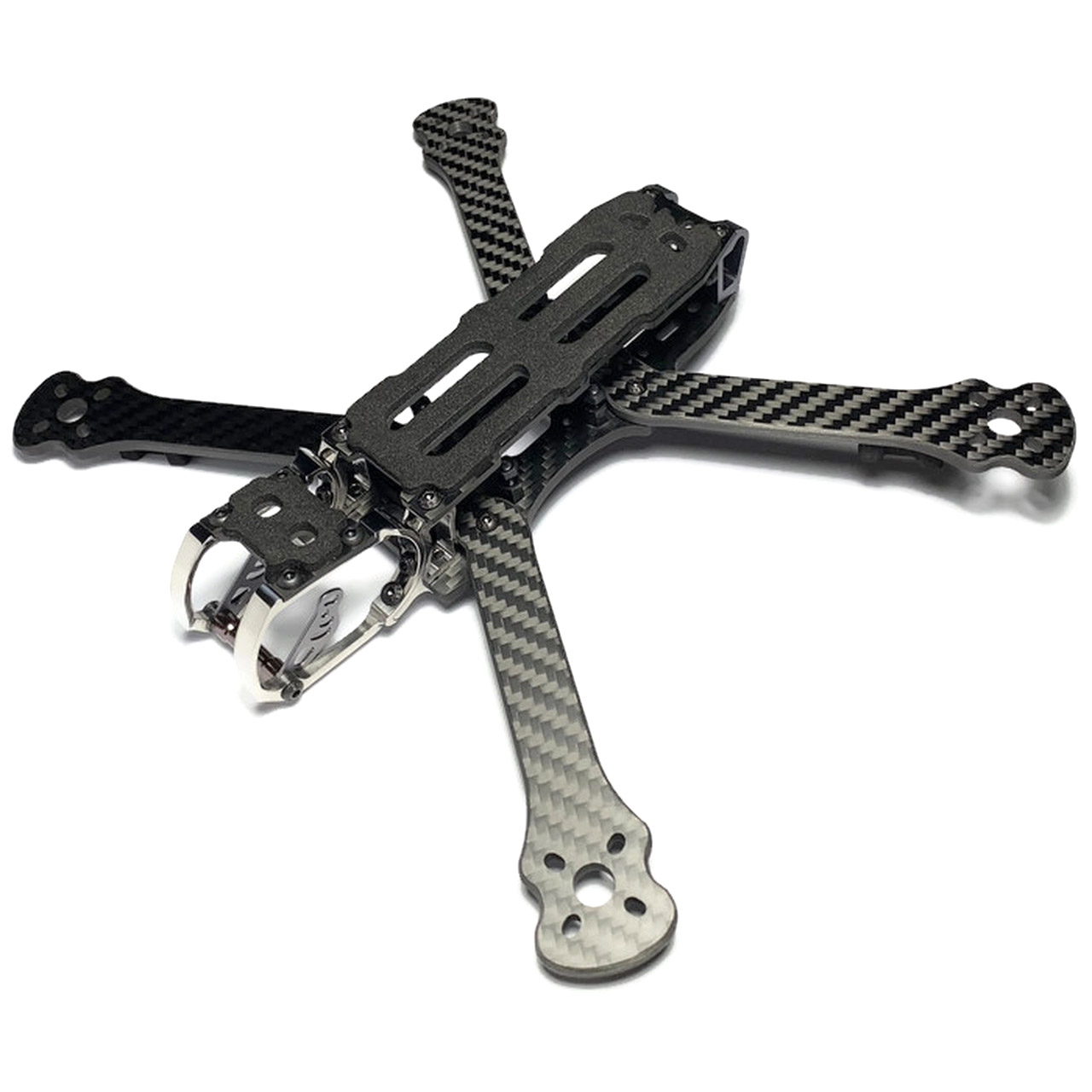

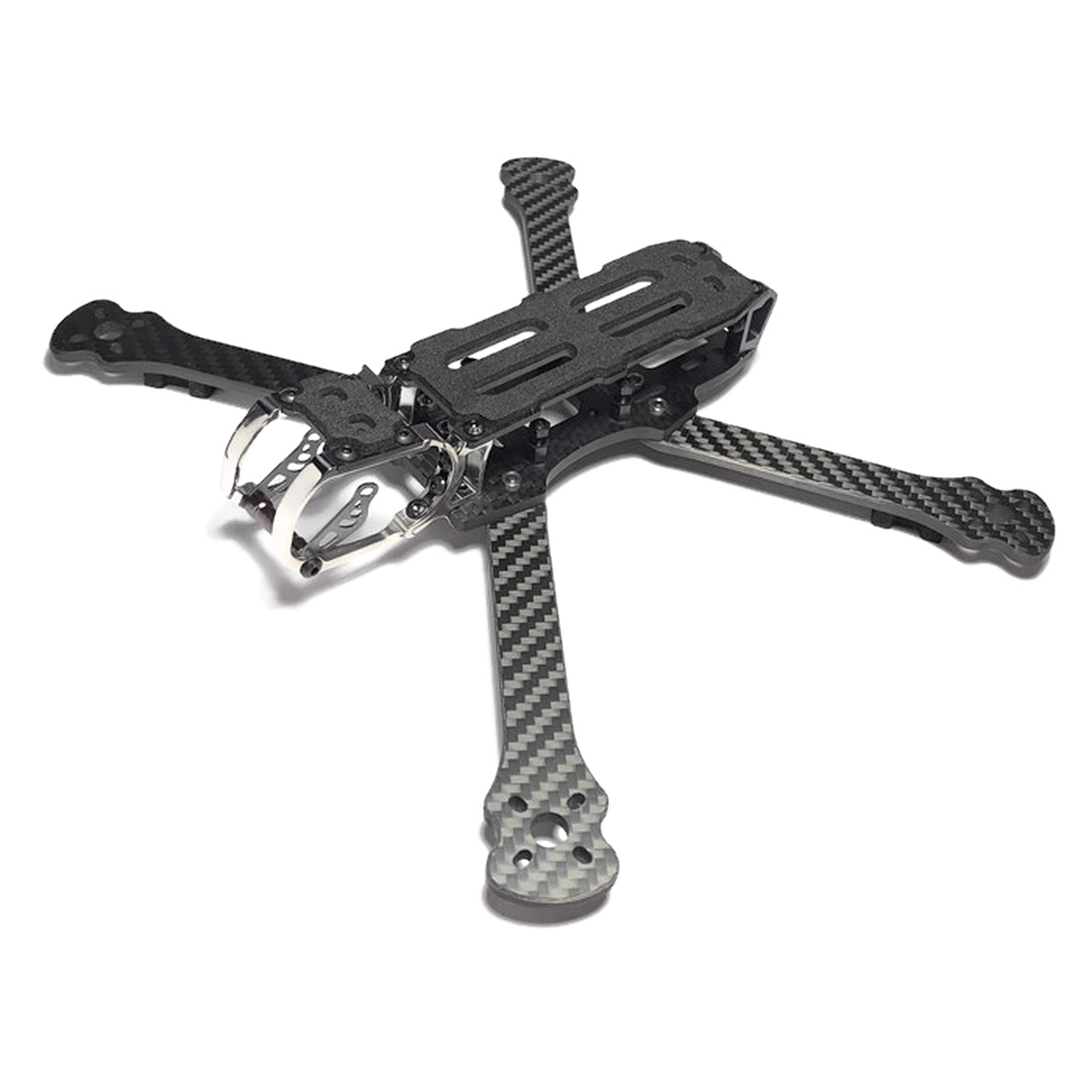

Armattan Badger 5" Frame

The humble badger is the namesake of Armattan's newest flagship.  With a design based off of the Marmotte frame, the Badger updates it with removable arms: carefully designed to ensure a rock-solid construction.

The Cage

This is the newest revision of Armattan's titanium cage; the same as on the Marmotte. And just in case you haven't heard what the perks of this cage are compared to any other, we'll run through them quickly here.

And the best part?  All of these perks come on top of the firm mount and incredible protection that you've come to expect from an Armattan product.

The Arms

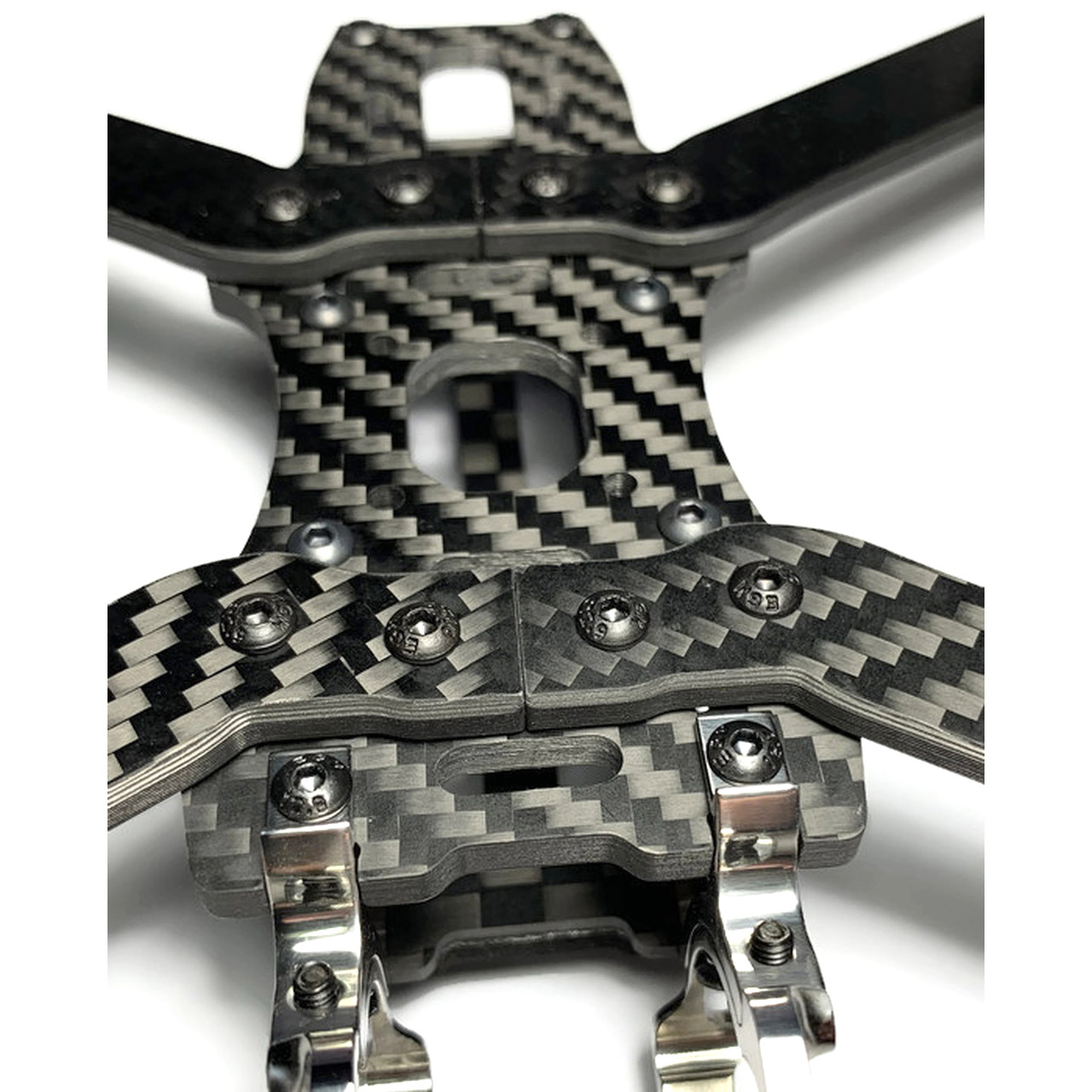

Since having removable arms is the major draw for this release, we wanted to specifically mention how they work.  The arms mount up with two bolts and two sunk-nuts each.  The sunk-nuts go straight into the 4mm baseplate, so there's no need to worry about delamination.  When installed, the arms meet in the center of the baseplate, further locking down the construction.  We're providing you with a remarkably solid, precise product, and we know that you will have full confidence in this frame.

Other Details

This frame comes with tons of other bells and whistles.  As you've come to expect, an extended-aluminum rear provides a protected mount for your VTX antenna no matter whether you use a TBS, SMA, or U.FL style connector.  The frame maintains compatibility with 5.5 inch props for those of you who like to ride the line, and the long body means you can more easily fit an HD camera and a bigger lipo, even with high cam tilt. The FC can mount up on either the 30.5mm or 20mm options, and there are even 20mm rear provisions as well for a VTX or any other board.

Add the differences in carbon and the extra hardware, and you're probably expecting this frame to be considerably heavier than the fixed arm version (the Marmotte).  Well due to our experience in design and some clever optimization, we've kept the difference down to 15g.  You can thank us later.
