BT2.0 1S Whoop Cable Pigtail (1pcs)

BT2.0 1S Whoop Cable Pigtail (1pcs) Product Details

BT2.0 Connector - the most significant revolution in 1S Tiny Whoop Drone. BT2.0 1S whoop cable pigtail is an option for you to modify your drone or your 1S FC board which is with the PH2.0 connector. With the 1.0mm banana connectors, it can support 9A continuous current and 15A burst. Makes the best potential of brushless whoop drone, and display t... More Details

Multi-Buy Discount

Ex VAT £1.62
Inc VAT £1.95

Out of Stock

Home Customer Reviews

BT2.0 Connector - the most significant revolution in 1S Tiny Whoop Drone.

BT2.0 1S whoop cable pigtail is an option for you to modify your drone or your 1S FC board which is with the PH2.0 connector. With the 1.0mm banana connectors, it can support 9A continuous current and 15A burst. Makes the best potential of brushless whoop drone, and display the perfect performance of your drone with BT2.0 300mAh 1S battery.

BULLET POINTS

BT2.0 connector decreased internal resistance of connector effectively by upgrading the crimped pins to 1.0mm banana connector and increasing the cross-sectional area of 1.0mm banana connector.
BT2.0 connector supports 9A continuous current and 15A burst, while the PH2.0 connector supports 4.5A continuous current. Brings more perfect flight experience when you fly the 1S brushless whoop drone.
By using the BT2.0 connector, it can solve the problem of voltage sag, the discharge of the 1S lipo battery becomes more efficient. Pilots can enjoy more flight time without disturbance of low voltage warning.
With the light and customized 22AWG wire, it will make the drone more lighter. The wire uses US standard core 0.08mm*60. The diameter of silicone outer layer is only 1.5mm, which is 0.2mm thinner than 22AWG standard wire.

SPECIFICATIONS

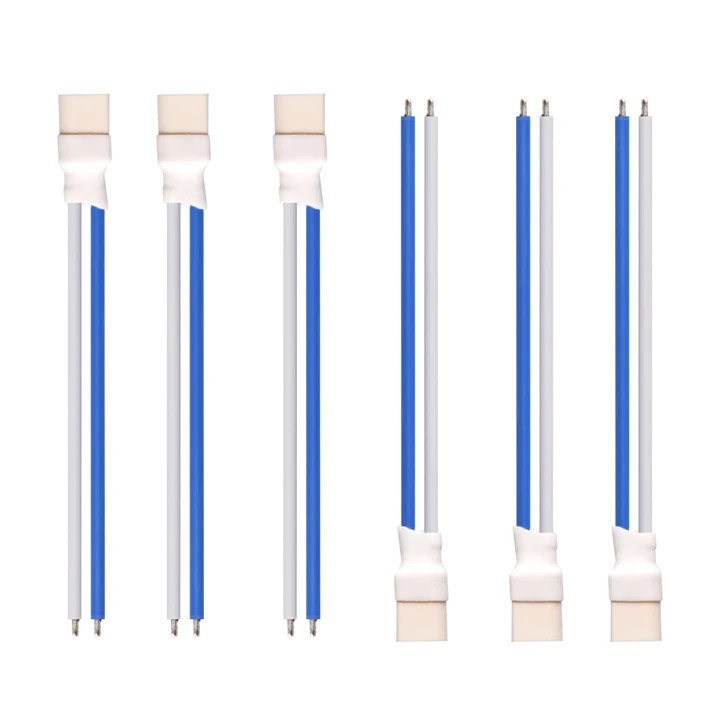

Item: BT2.0 1S Whoop Cable Pigtail
Wire Type: 22AWG
Connect: BT2.0 Male Connector
Length: 55mm (Not included the plug)
Weight: 0.91g/pc

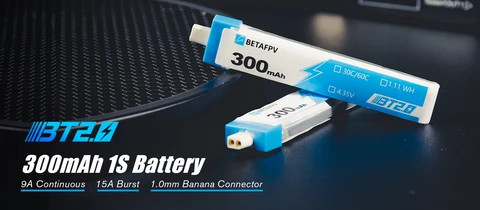

Battery: BT2.0 300mAh 1S Battery
FC: F4 1S Brushless FC

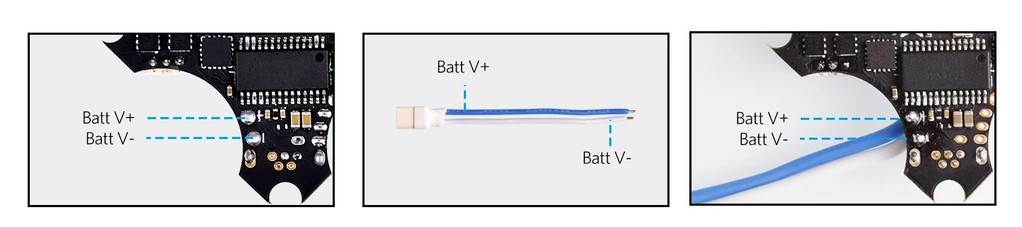

HOW TO RESOLDER YOUR BOARD WITH BT2.0 CABLE
BT2.0 1S Whoop Cable Pigtail is composed of blue wire and white wire. The blue wire is the positive pole(+), the white wire is the negative pole(-). When you re-solder your board, please pay attention to the connection method.

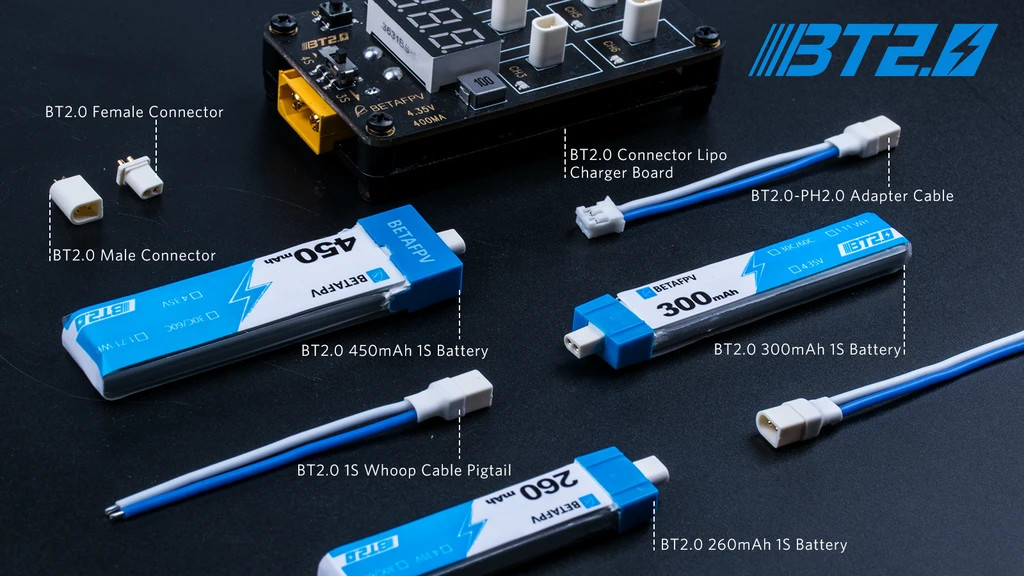

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector decreased internal resistance of connector effectively to allow more current that is transferred, which means it supports 9A continuous current(15A burst) offers stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A You can enjoy more flight time without disturb of low voltage warning through solving the problem of voltage sag.

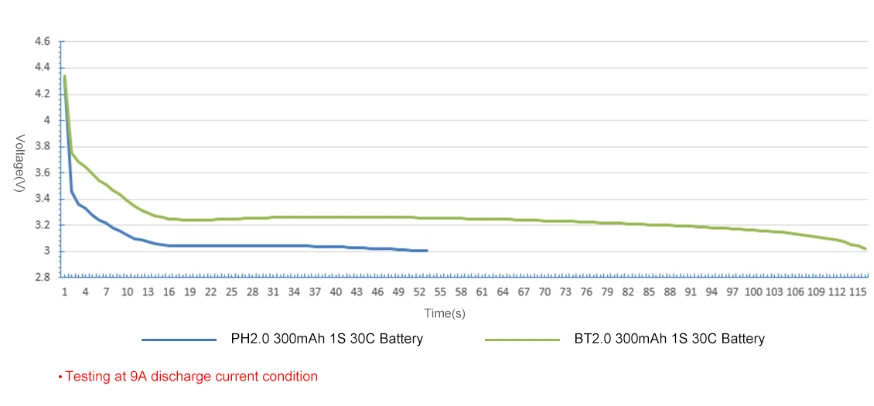

There is a graph of comparison between BT2.0 connector and PH2.0 connector (solid pins version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this testing. You could see that it has double time (about 2minutes) with BT2.0 connector.
