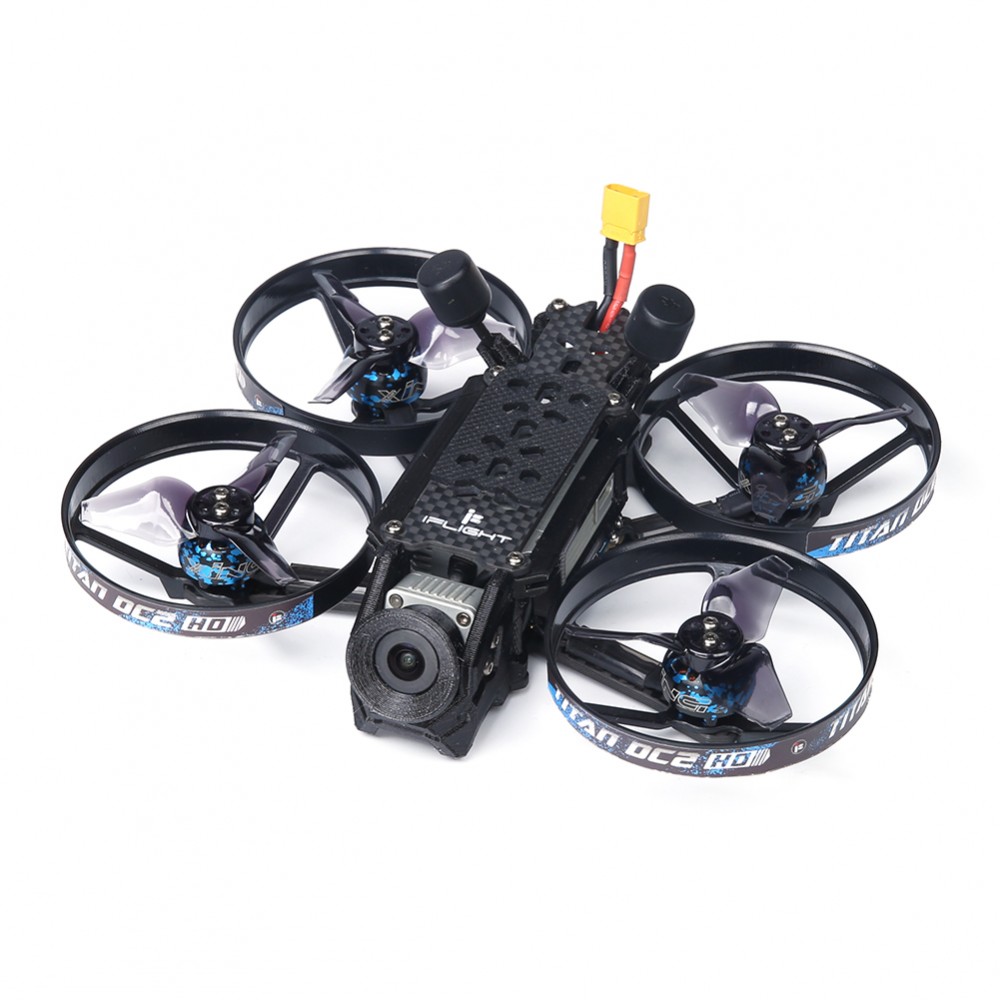

iFlight Titan DC2 HD Whoop

Product Description

Features：

•     Less than 250grams including 4S 450mAh battery (sold separately)

•     No Props or frame in view!
•     Low Resonance frame construction (Less Jello, more Cinematic)
•     DJI FPV Air Unit 720p 120fps FPV feed (record in 1080p/60fps)
•     Butter smooth XING1404 4S

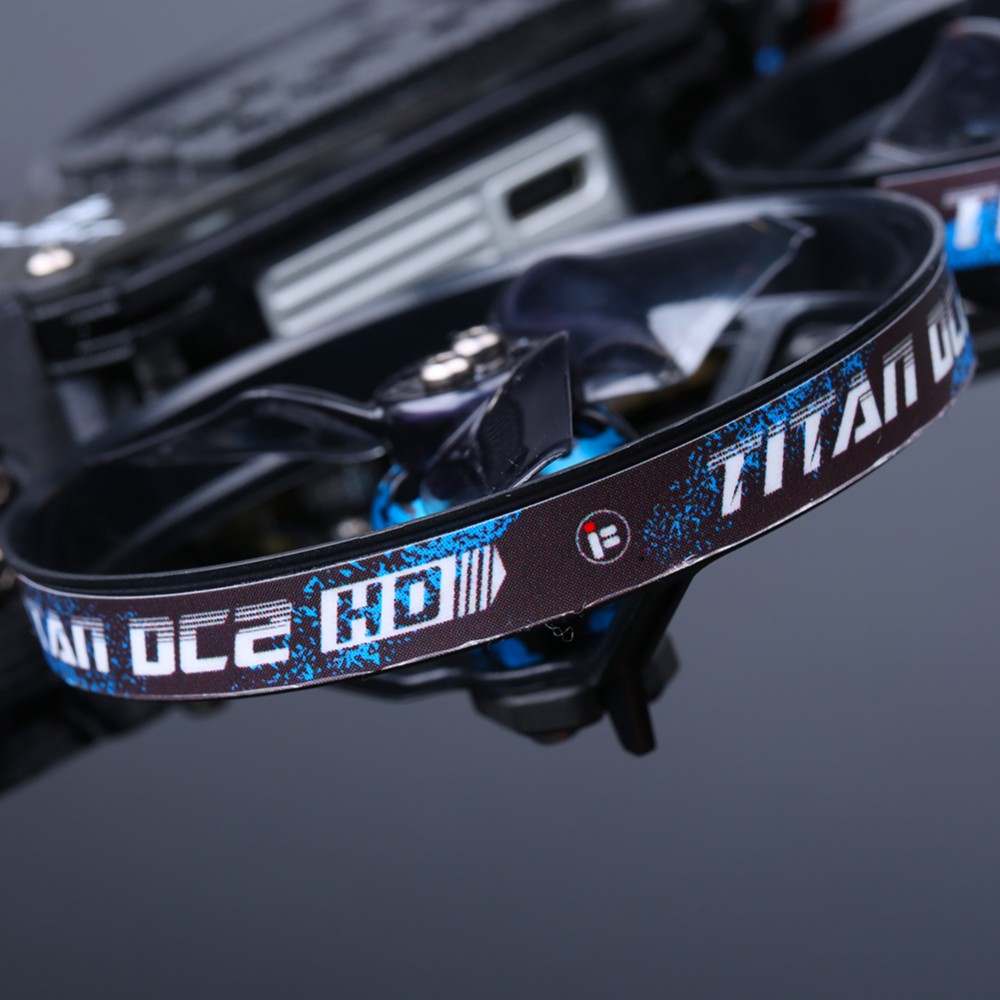

•     Duct prop guards to protect the sensitive environment or yourself
•     Pre-tuned with smooth freestyle settings

TITAN DC2 BNF Specs:

•     SucceX-A F4/40A BLHeli_32 true AIO board
•     Motor: XING NANO 1404 4600KV

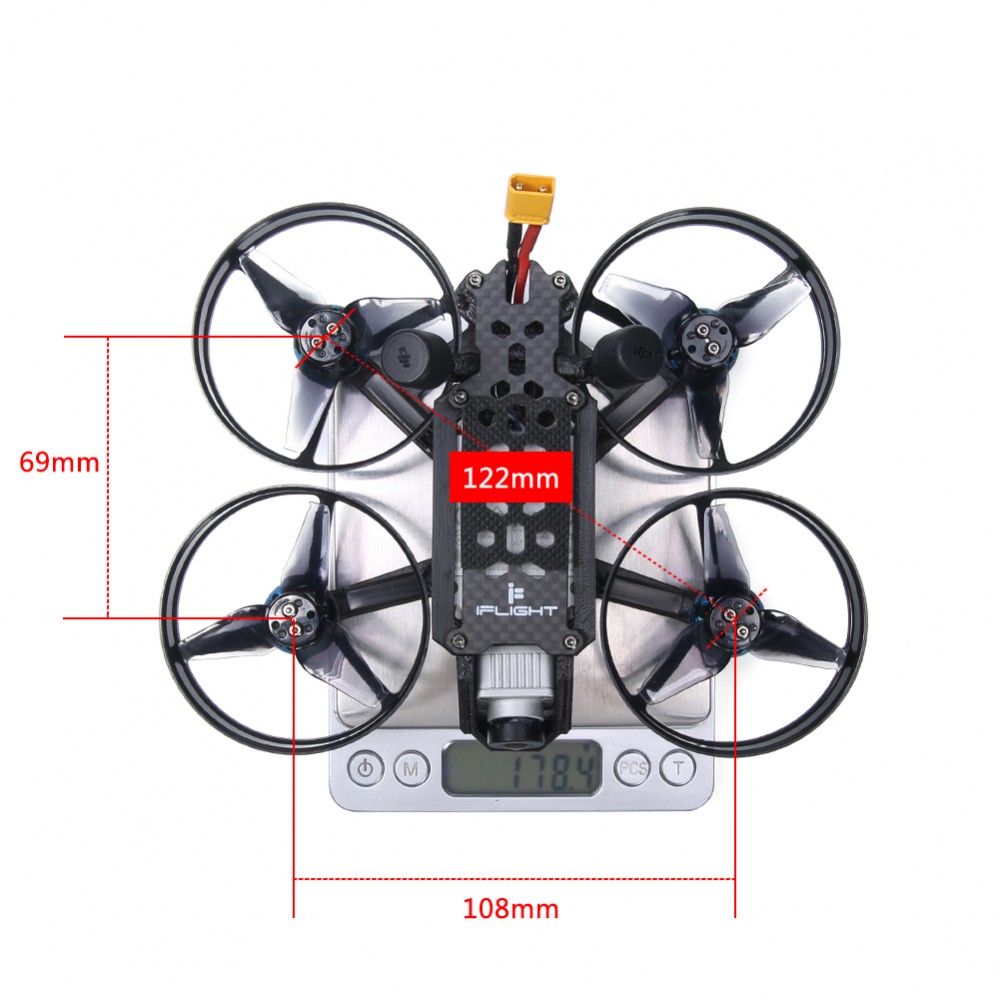

•     Wheelbase: 122mm
•     Bottom plate thickness: 3mm

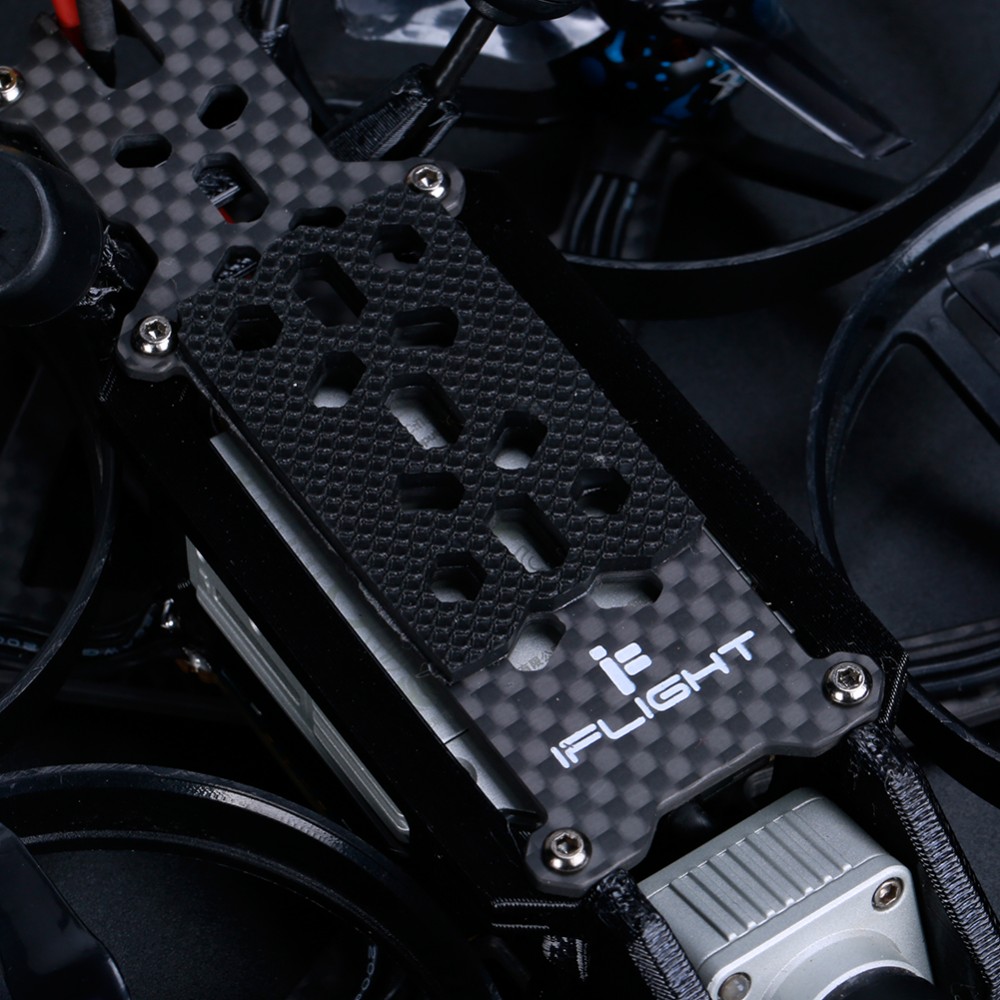

•     Top plate thickness: 2mm
•     Top and bottom plate spacing: 25mm (aluminum column height 25mm)
•     Ducted propeller size: 2.3 inch

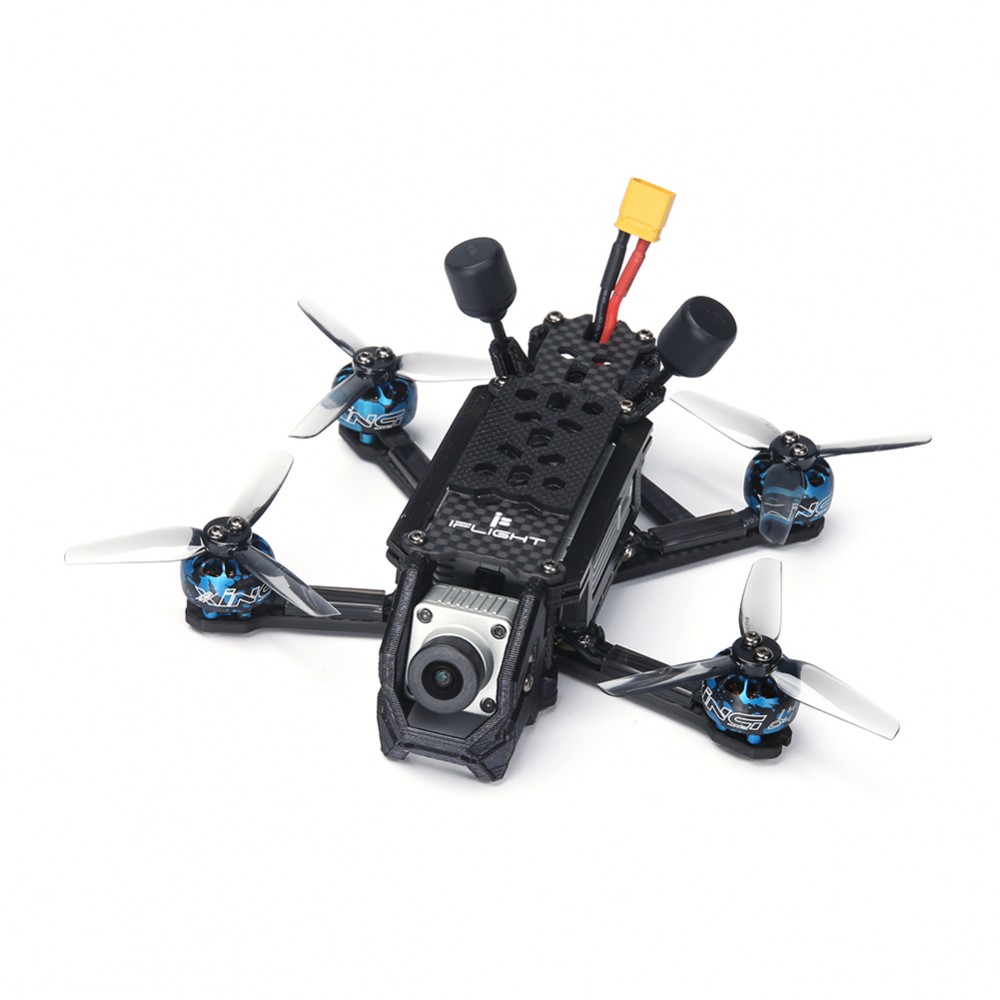

•     Maximum propeller size without ducts: 2.5 inch (or 65mm props)
•     FC pattern: 20*20mm，30.5*30.5mm
•     FPV cam spacing: 19mm
•     Weight: 165g (without battery)
•     Flight time: 5-6 min cruising

TITAN DC2 HD Quad BNF Included Components and Parts

•     Prebuilt and tested Quadcopter
•     1x TITAN DC2 HD Frame
•     1x DJI Digital HD FPV Air Unit (FPV Camera + Air Unit Module)
•     1x TPU Bracket for DJI Air Unit Module
•     1x TPU Antenna holder for DJI antenna

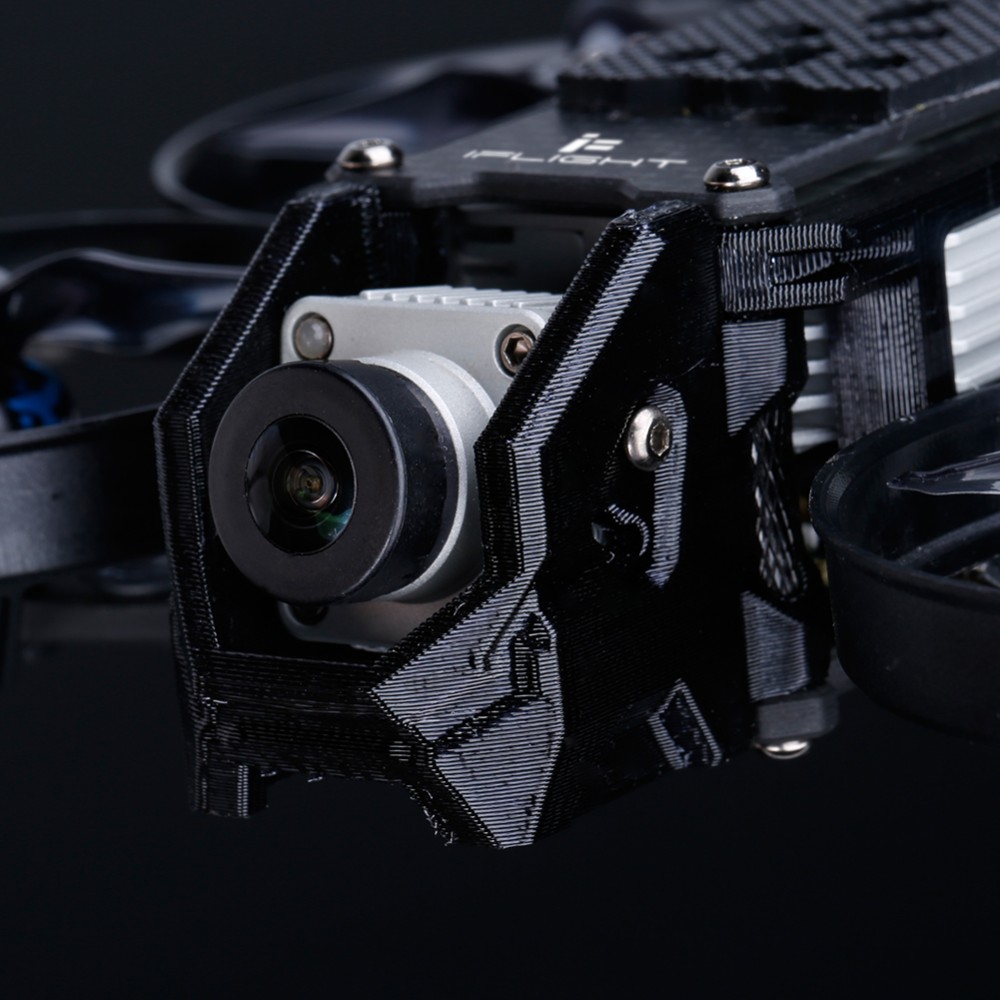

•     2x TPU camera side plate soft mount
•     2x 2327-3 / HQ 65mm-3 (Set of 4 - Color May Vary)
•     1x iFlight Lipo Strap

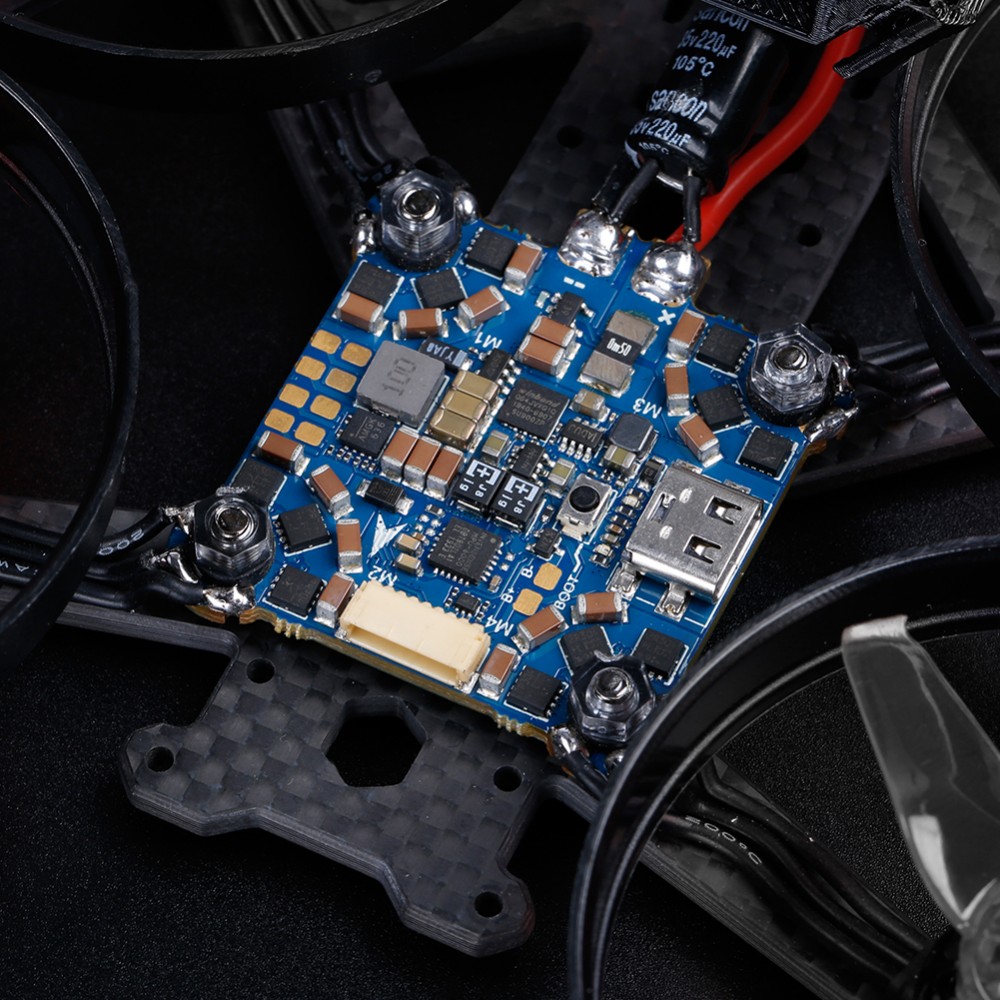

FC // SucceX-A F4 AIO

•     MCU: 168MHz STM32F405
•     Gyro：MPU6000
•     Blackbox：8MB
•     OSD Chip: NO (Analog OSD not available)
•     OSD Betaflight: YES (Digital DJI Air Unit pass-through)
•     BEC: 5V 2.5A  (3A MAX) / 10V 2.5A (3A MAX)
•     Voltage sensor scale: 110
•     Current sensor scale: 100
•     Inverter for SBUS input (UART2-RX)
•     Beeper pad : Yes
•     RSSI input pad: No
•     UARTs：5
•     Motor outputs: 4
•     8 pin for DJI air unit port (10V，GND，T1，R1，GND，R2I，T2，5V)
•     BLHeli32 Telemetry：RX4
•     Input voltage：recommended 2-6S
•     Firmware: IFLIGHT_F405_AIO
•     Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm
•     Dimensions:   40.5*43mm
•     Weight: 11.4g
•     USB type-C

ESC // SucceX 40A 2-6S

Top Features:

- 6 layers double-sided PCB board

- 2oz 1.6mm thick power board

- 32bit STM32F051 MCU, 48kHz maximum clock speed

- TDK MLCC Low ESR ceramic capacitors

- Top grade TPN2R304PL MOSFET

Specification:

•     MCU: STM32F051
•     Up tp 48kHz PWM frequency
•     Capacitance: 484uF
•     Current Sensor: Yes
•     Input: 2-6S LIPO
•     Constant: 40A / Burst: 50A
•     BlHeli32 telemetry: Yes
•     BEC: No
•     Supports up to Dshot1200, Proshot, Oneshot, Multishot
•     Target: iFlight-BL32-4IN1
•     Mounting pattern: 30.5*30.5mm/Φ3mm
•     Dimensions: 43*39mm (including the power pads)

Additional Suggested Parts

- DJI HD FPV Goggles
- Battery light 4S 450mAh (indoor)
- Battery 4S 650mAh (outdoor)

Important

The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don't choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.
