SucceX Mini 55A 2-6S ESC V2.0

SucceX Mini 55A 2-6S ESC V2.0 Product Details

iFlight SucceX Mini 55A 2-6S ESC V2.0 Features:6 layers double-sided PCB board;2OZ copper skin thickness for 1-4 layers,better operating load capacity;Standard 20*20 Φ4mm mounting holes, rational layout, countersunk holes on extended power soldering pad enable each layer board can be powered;Supports DShot DShot150/300/600/MultiShot/ OneShot ... More Details

SucceX Mini 55A 2-6S ESC V2.0
SE10753

IN STOCK

£79.95 (Ex VAT £66.62)

Home Customer Reviews

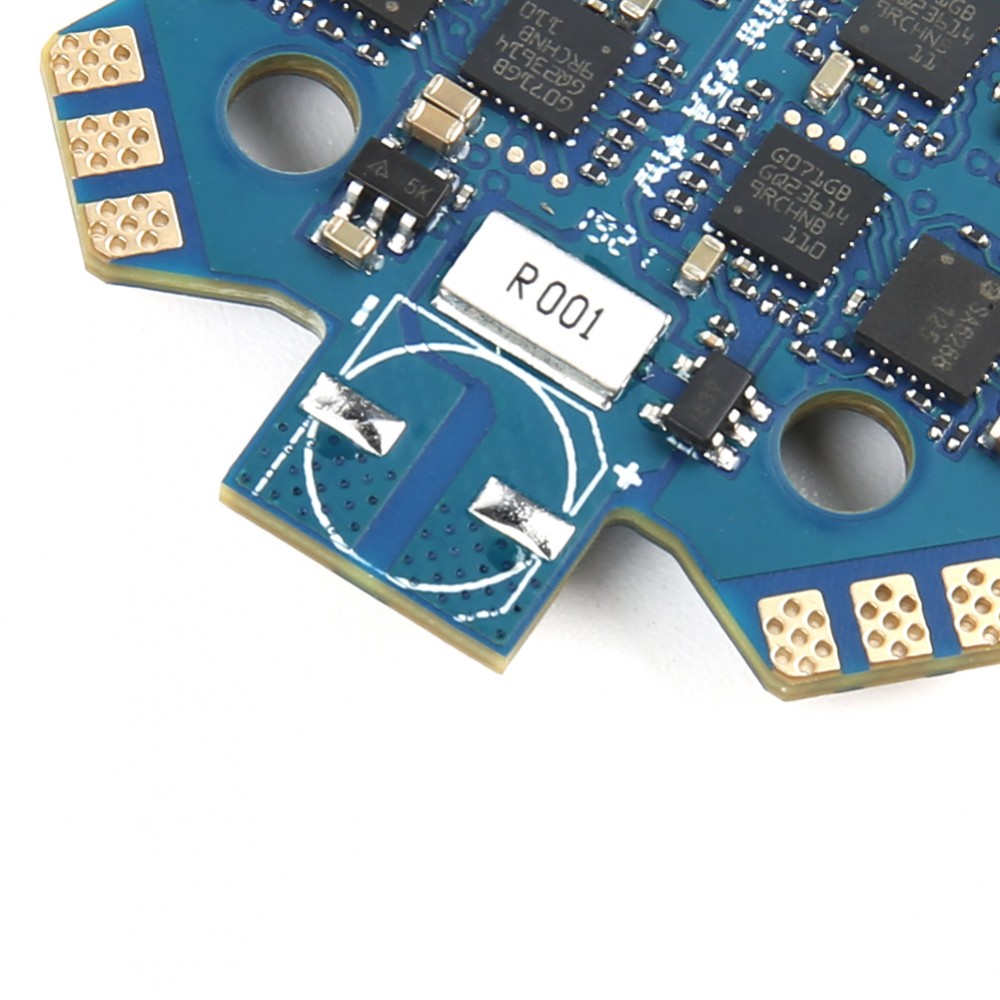

iFlight SucceX Mini 55A 2-6S ESC V2.0

Features:

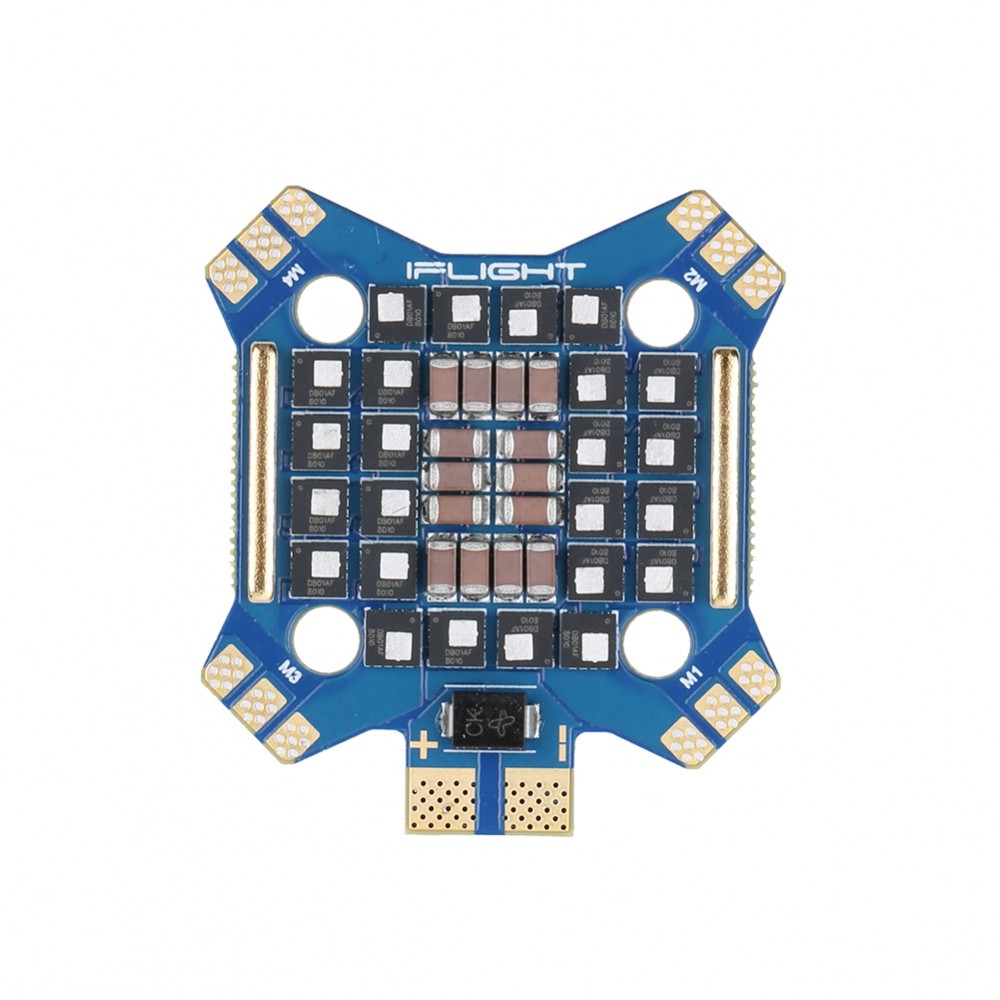

6 layers double-sided PCB board;
2OZ copper skin thickness for 1-4 layers,better operating load capacity;
Standard 20*20 Φ4mm mounting holes, rational layout, countersunk holes on extended power soldering pad enable each layer board can be powered;
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Specification:

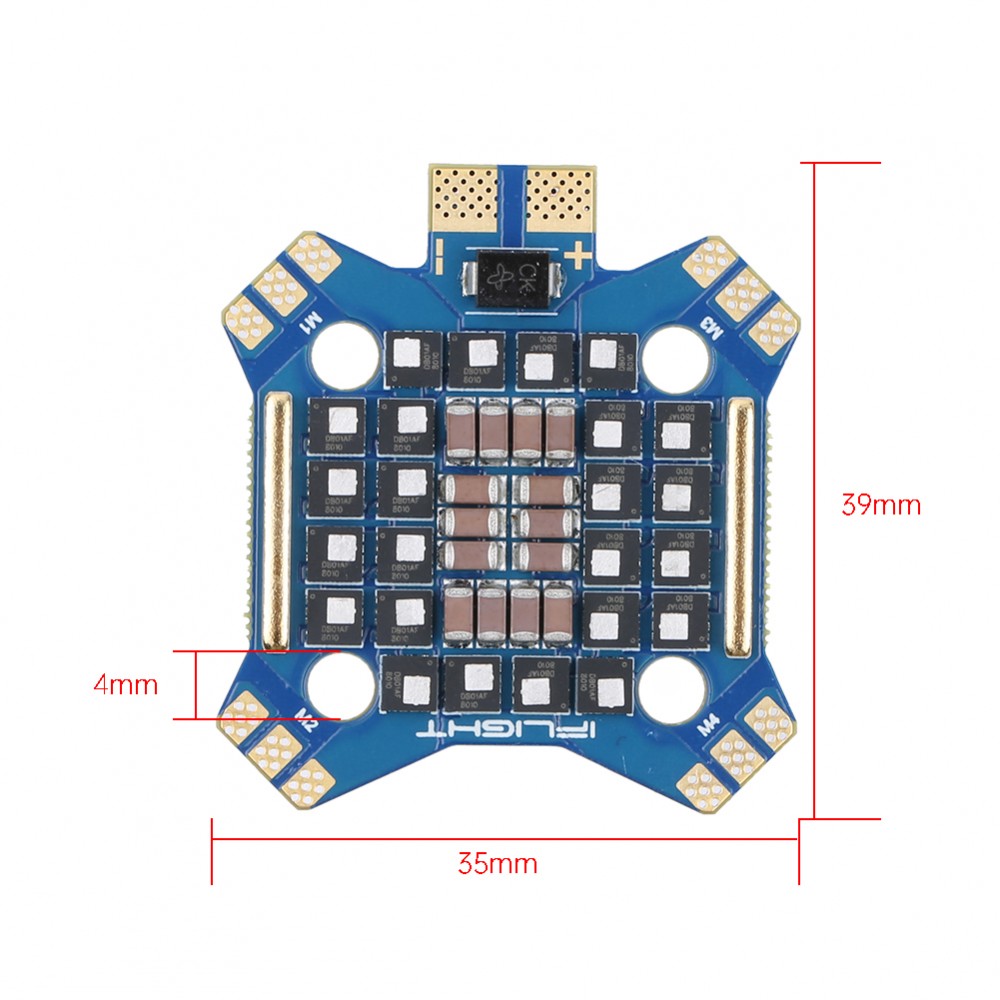

- Dimension: 31*29.5mm
- Mounting Holes: 20*20mm/Φ4mm

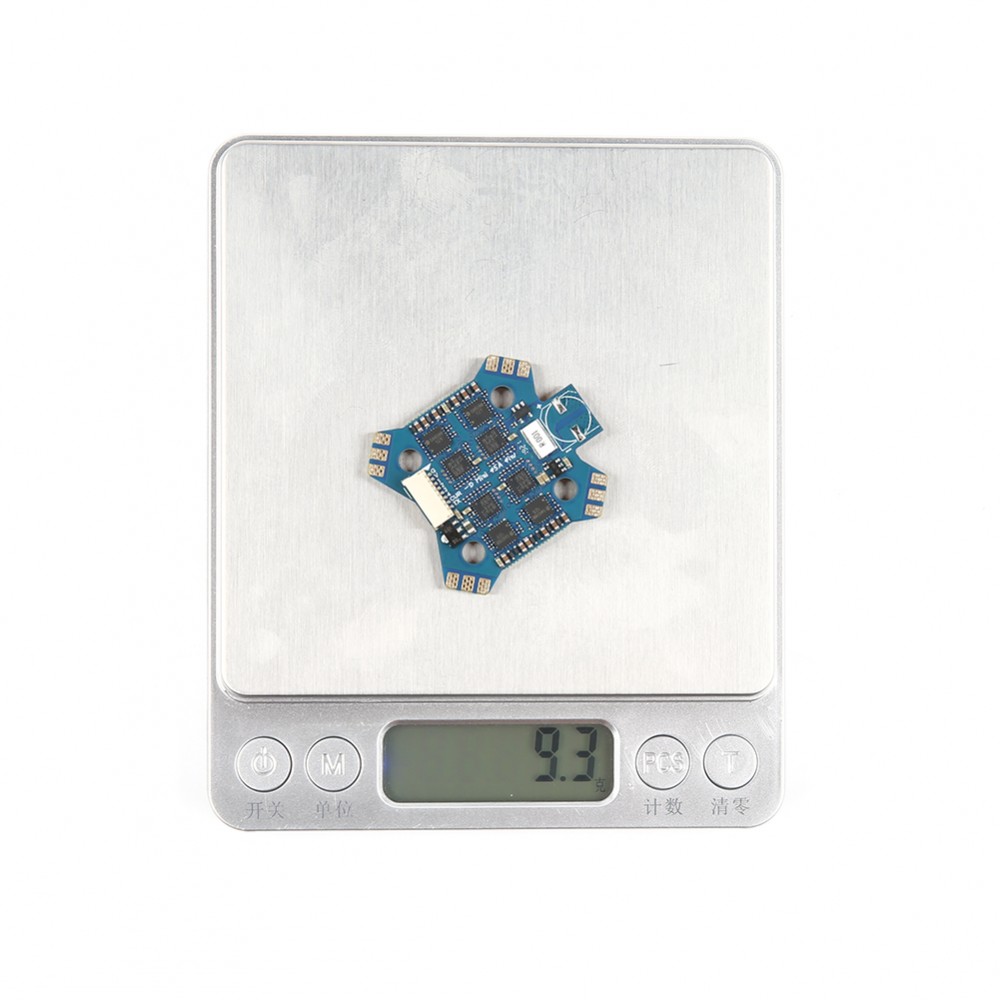

- Weight: 10.8g
- Supports 2-6S lipo input

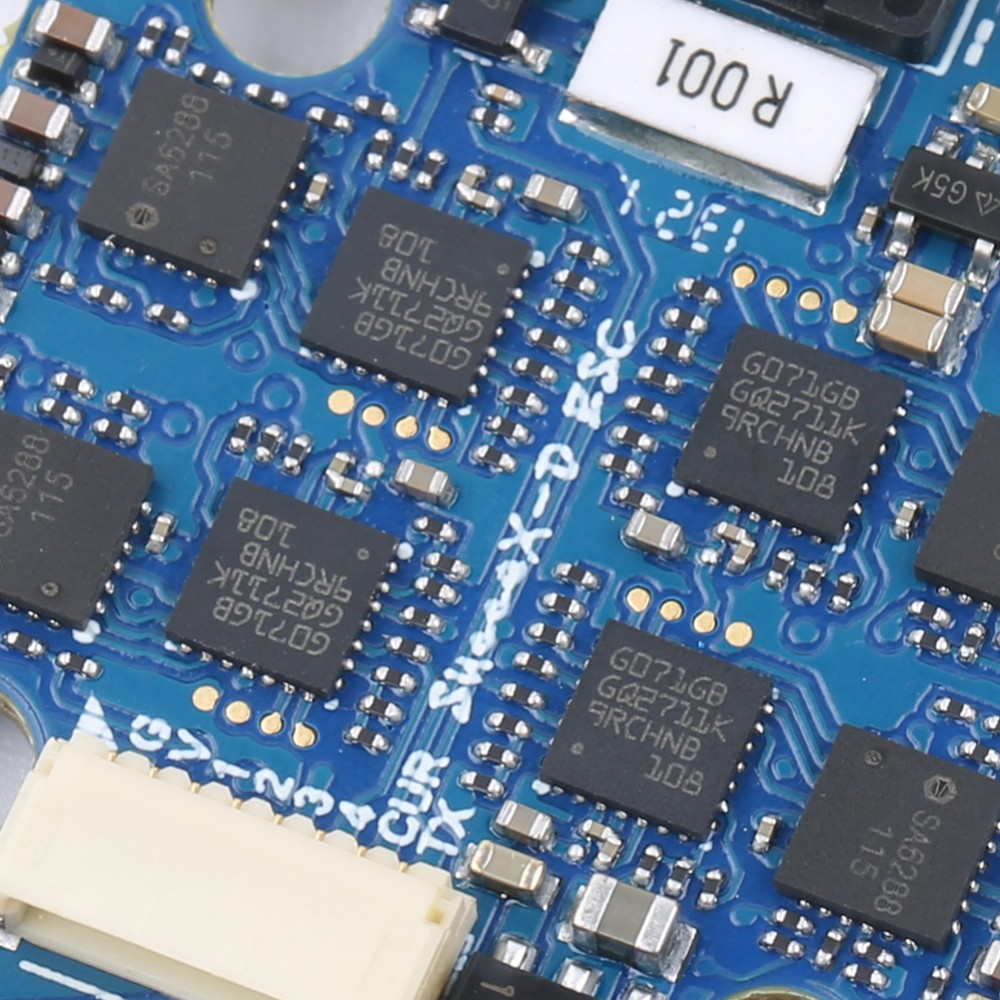

- MCU：G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: iFlight-G071-4IN1

Package Includes:

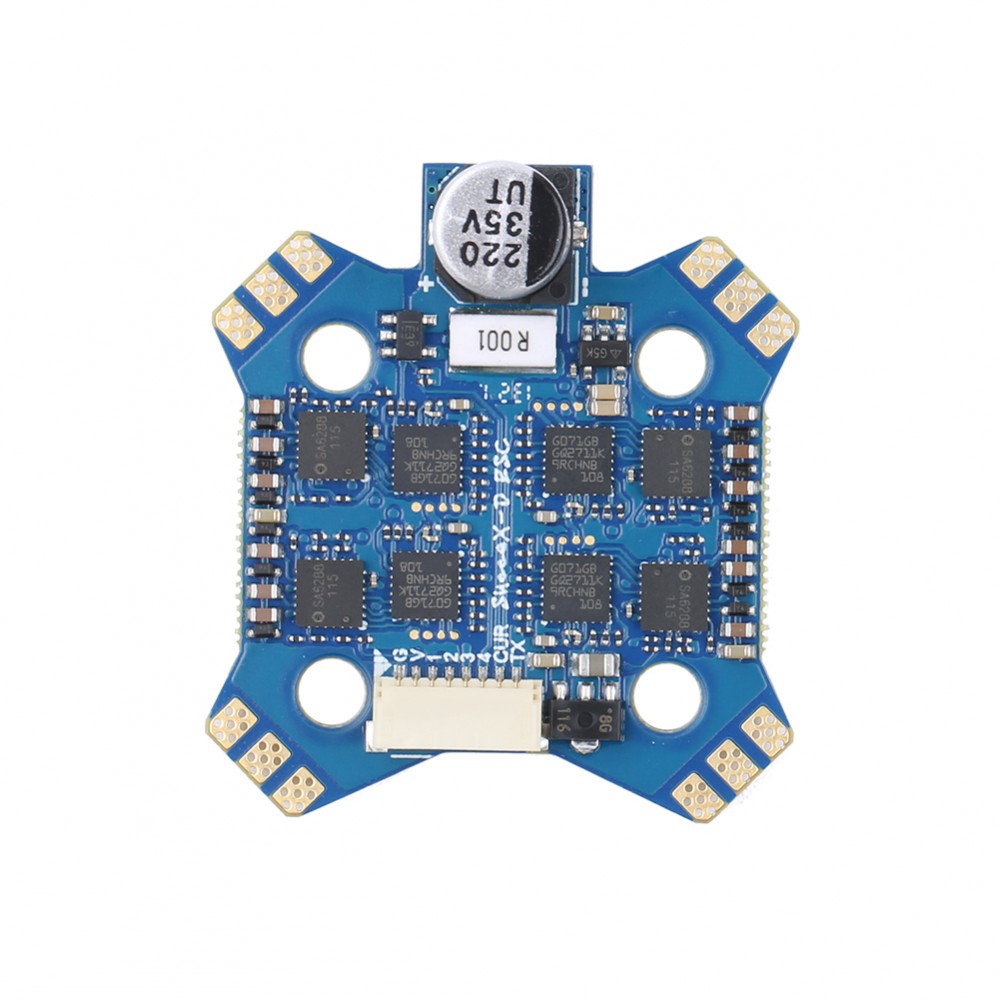

1x SucceX 55A V2 4-in-1 ESC
1x Power cables & ESC signal wires set
