The Secret Of Ultimate Performance Is PassionThat was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.
Lightweight Side Panels - Keep Your Rig CleanEver felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well... These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.

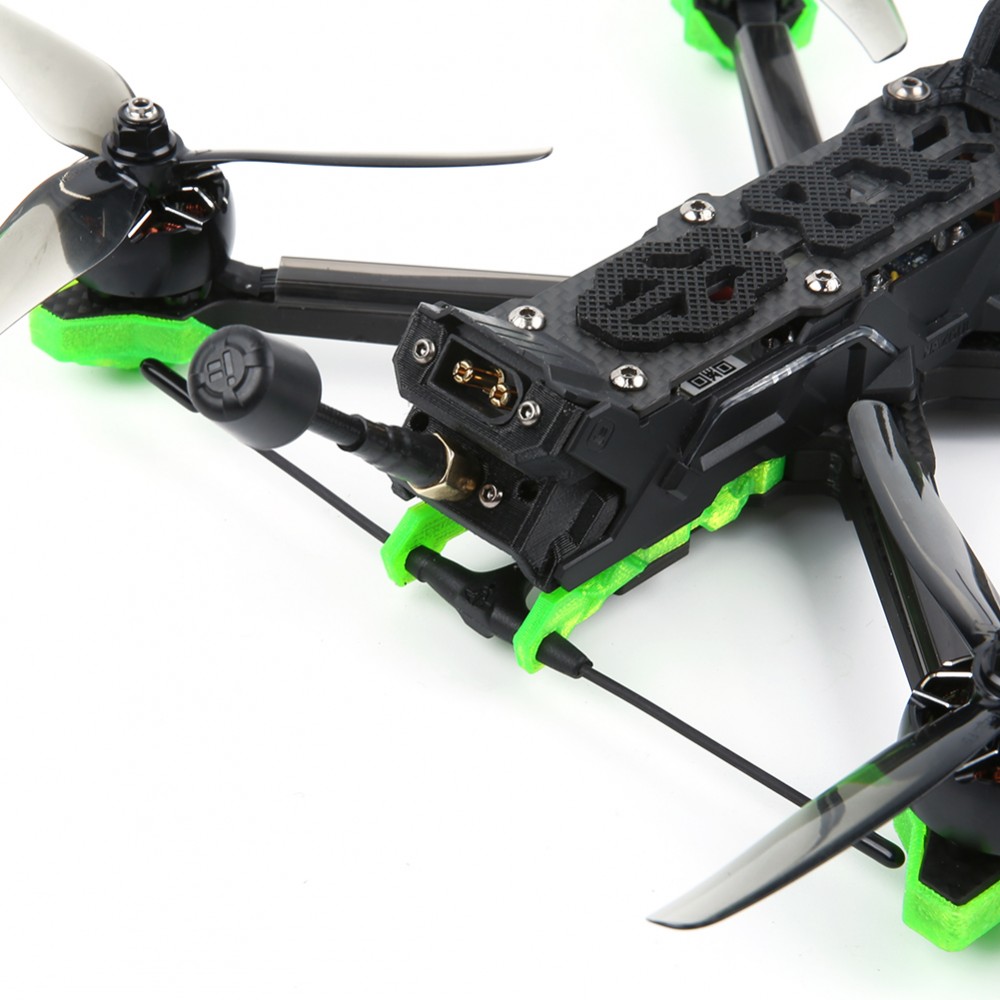

Secured Integrated XT60 Battery Plug - As Safe, It Can BeDangling battery plugs will ALWAYS find a way in your props, there's always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.

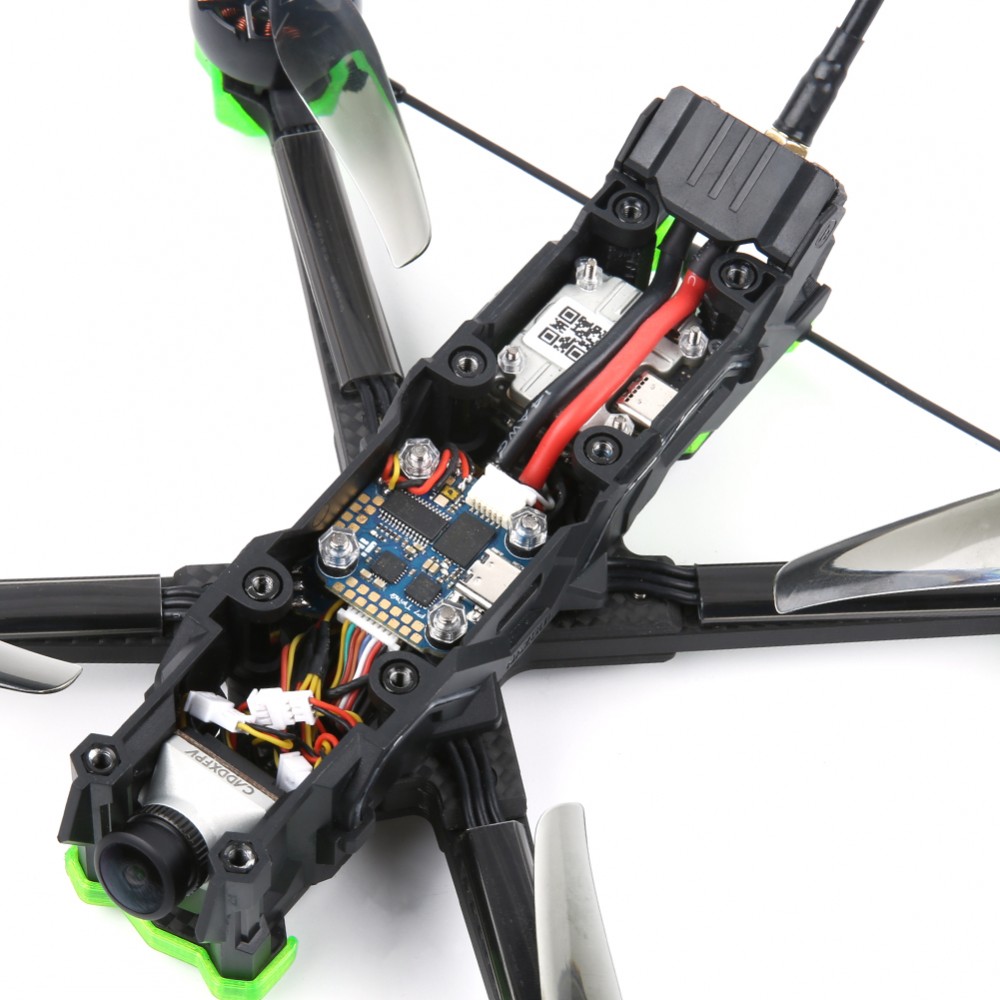

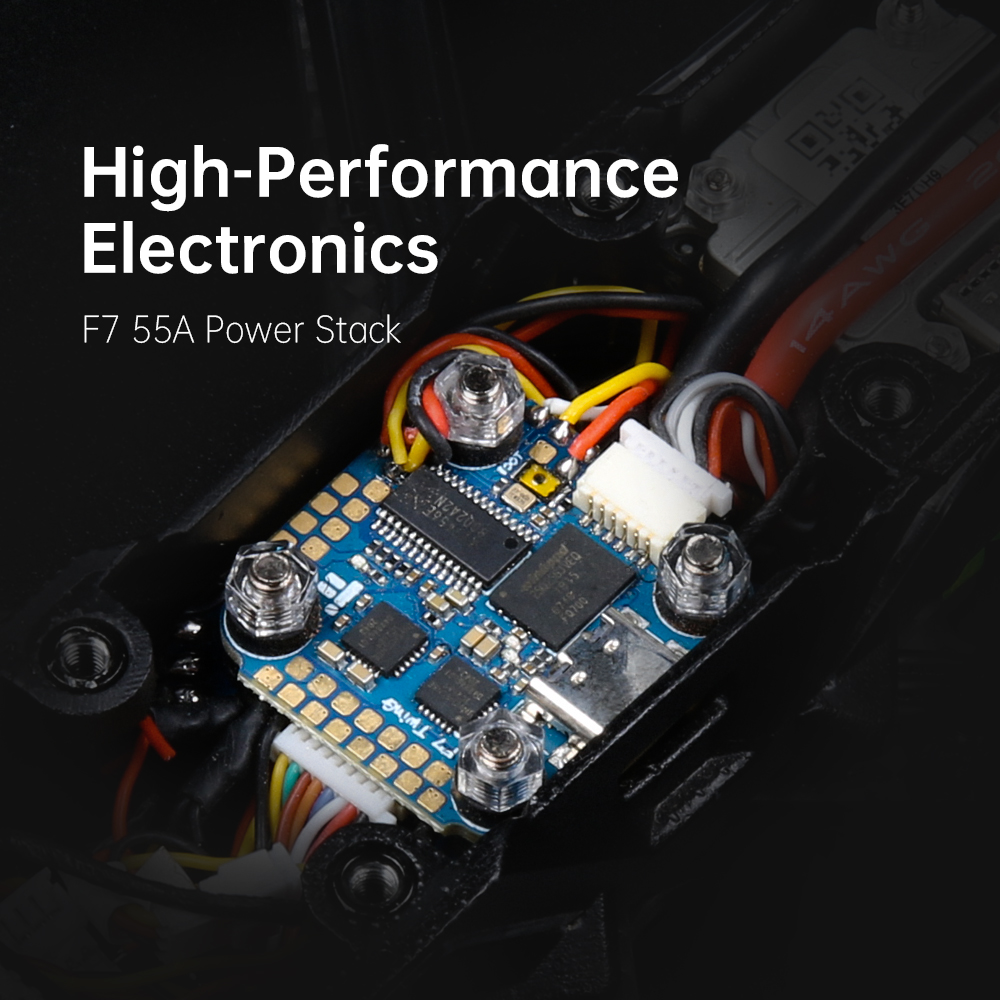

High-Performance Electronics - F7 55A Power StackOur
BLITZ Mini F7 TwinG flight control with Gyro Fusion technology, modern
USB type-C plug, 32MB flash for every tuning session, and 5 UARTs for
whatever equipment you might possibly wanna use. Power from the gods
with our new BLITZ Mini 55A ESC packed with better heat-dissipating
Mosfets and a whole bunch of SMD capacitors to filter out possible motor
noise, besides the pre-soldered directly installed Capacitor right next
to your battery leads.

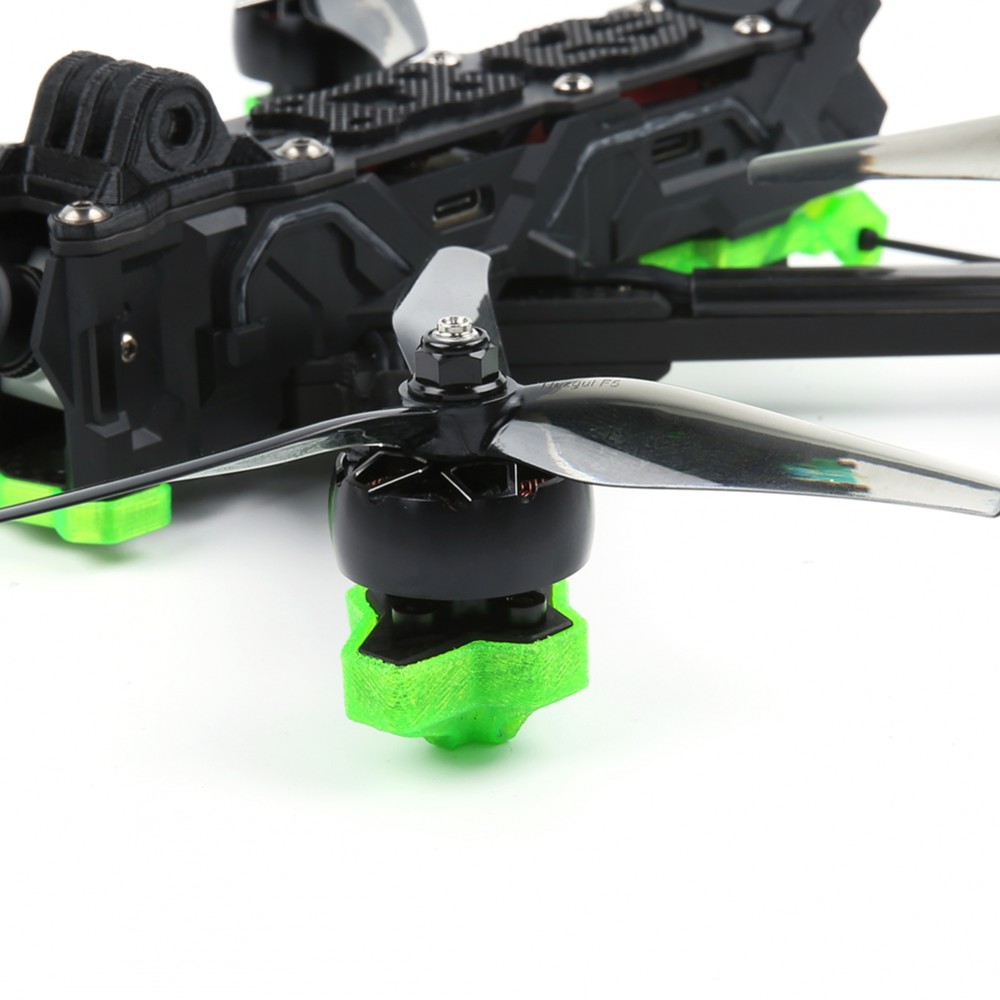

XING2 Performance Motors - The Best Motors Just Got Better7075
aluminum bell, 5mm titanium alloy shaft, NSK durable bearings, Center
slotted magnets for better response, and lower air gaps for a higher
magnetic flux with increased performance and efficiency. Not to mention
the typical XING damping ring between the bell and bearing to increase
durability and smoothen out your flights.

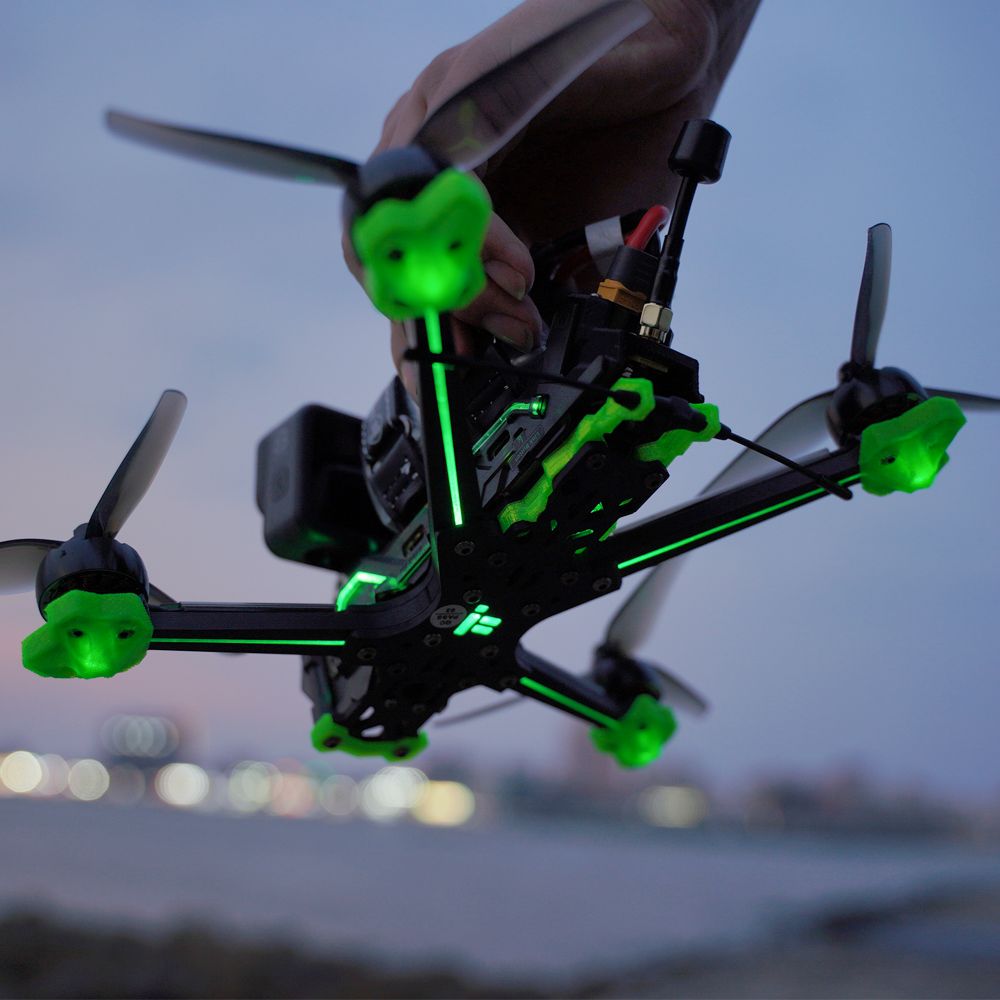

Illumination - Let It Be Green360-degree
illumination for day and night. Maybe the prettiest BNF out there but
also a practical one. The bottom light indicates battery voltage, a
quick check gives you a hint of the voltage still remaining; Never lift
off with an empty battery again. Installed LED wires in the side panels
and the bottom of the arms are also illuminated and gives you some style
at the next night's race.
XING2 Performance Motors - The Best Motors Just Got Better7075 aluminum bell, 5mm titanium alloy shaft, NSK durable bearings, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency. Not to mention the typical XING damping ring between the bell and bearing to increase durability and smoothen out your flights.
Illumination - Let It Be Green360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night's race.
Change-log:- August 2021: The color of 915 antenna mount changed from green to black, change the foam inner packaging to blister material
- August 2021: Before two antennas changed to one.
- October 23, 2021: Before Polar Caddx Vista changed to DJI Camera Vista
- October 2021: Before SucceX-E mini F7 Stack(F7+45AESC) changed to BLITZ MINI (F7+BLITZ E55 4-in-1 ESC)
- February 2022: Before BLITZ MINI F7 V1(MPU6000) changed to BLITZ MINI F7 V1.1 (BMI270)
- July 2022: Before DJI Camera Vista HD System changed to Nebula Pro Vista HD System

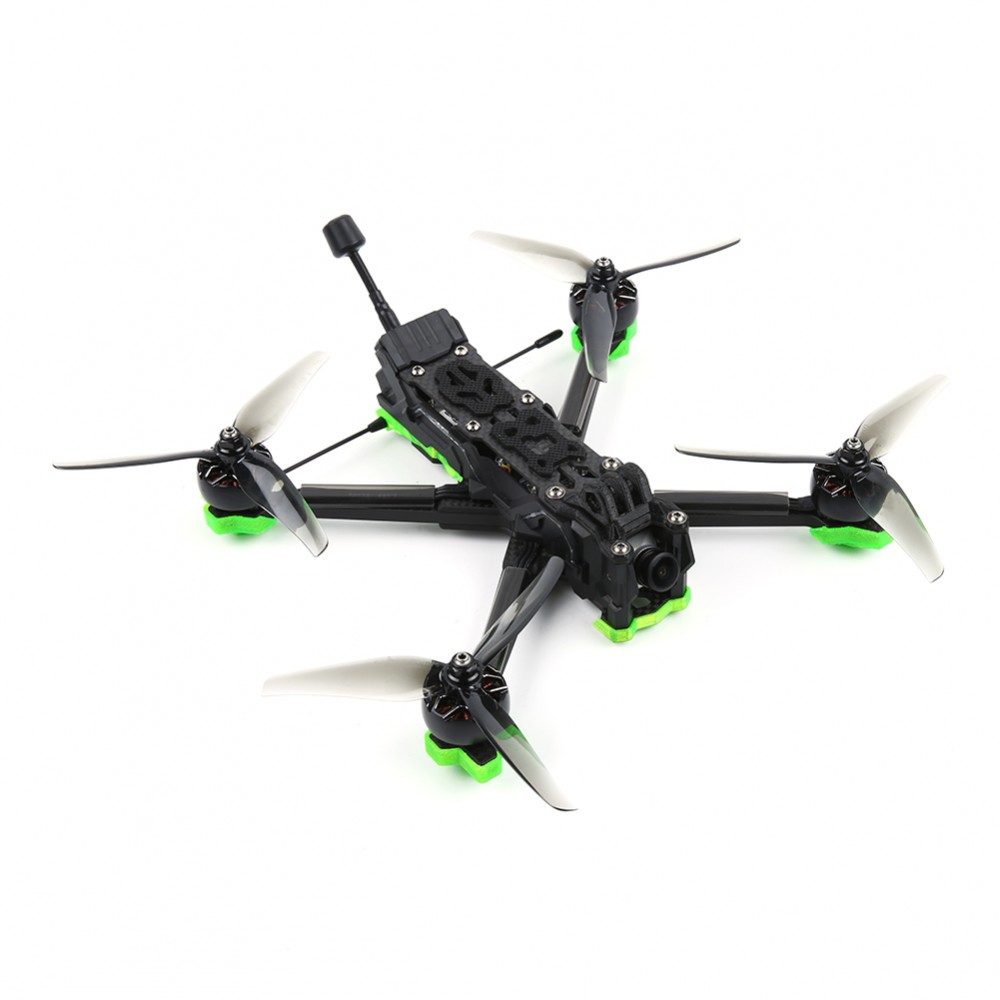

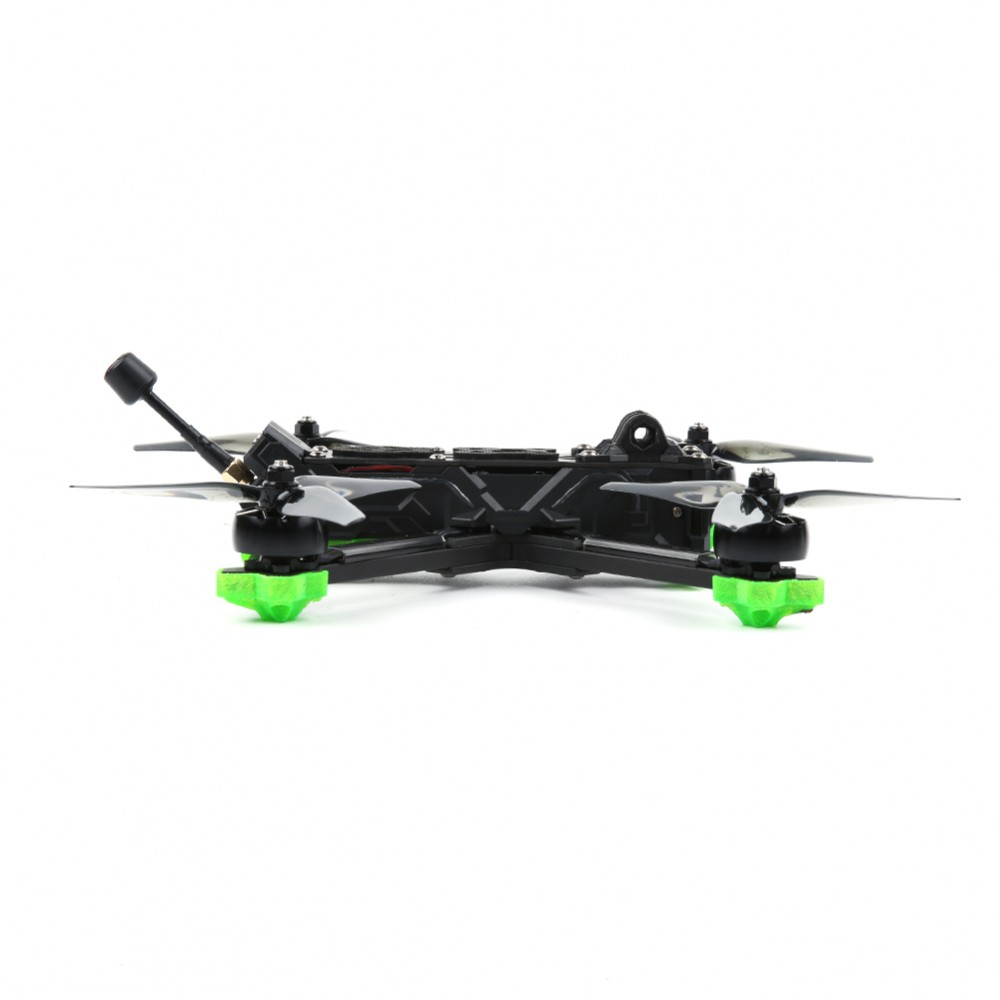

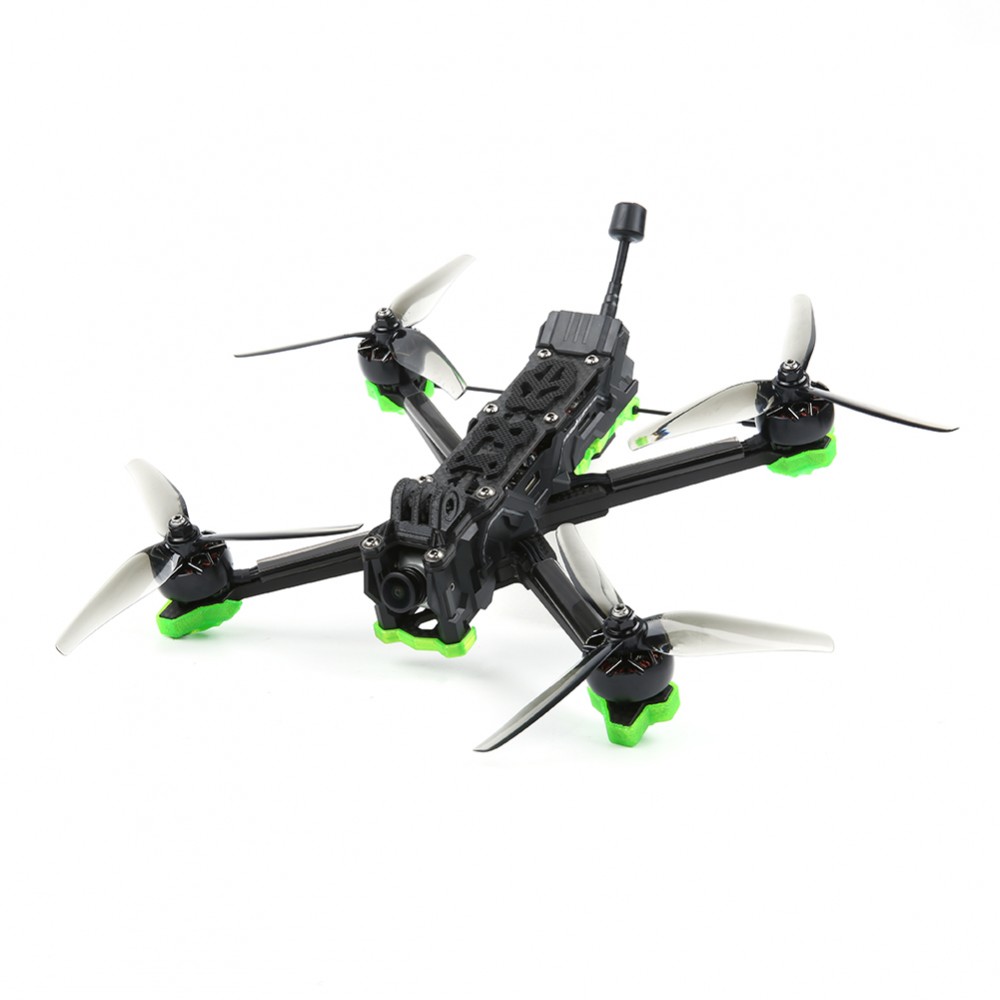

Specifications:- Total Dimensions: 255.4mm (Squashed X) / 262.6mm (DeadCat)
- Geometry: Squashed-X or DC (DeadCat) frame available
- Bottom to top distance: 28mm
- Arm Thickness: 6mm
- Bottom plate thickness: 3mm
- Top plate thickness: 3mm
- Upper(middle) plate thickness: 3mm
- XING2 2506 1500KV motors(Black color)
- HQ 6X2.5X3 Tri-blade Props
- Weight: 464.3g (without battery and GoPro mount)
FC // BLITZ MINI F7 (LINK)
Top Features:
- BlackBox: 16MB
- DJI Air Unit Plug-and-Play. No need to solder tiny wires.
- BAT, +5V, 3.3, Start indicator
- With LC filter.
Specs:- MCU:STM32 F722
- Gyro:MPU6000
- Baro: NO
- Betaflight OSD:IFLIGHT OSD (AT7456E)
- Blackbox:16MB
- 5 X Uarts
- UART1 for VTX HD/Analog
- UART2 for Receiver
- UART3、UART4 for GPS or 0ther sensors that require a serial port
- UART6 for ESC Telemetr
- 4×Dshot/PWMoutputs
- 1×I2C
-1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)
- 1 xSH1.0 8pin connector for ESC(R6/CUR/M4/M3/M2/M1/BAT/G)
- 1xSH1.0 6pin connector for Any Receiver or DJI(3V3/R2i/5V /G/R2/T2)
- 1xSH1.0 4Pin connector GPS (T4/R4/G/5V)
- 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
- Smartaudio&IRCTramp VTX protocol supported
- WS2812ledStrip:Yes
- Bepper:Yes
- Firmware: IFRC-BASEF4 4.X.X
- Mounting:20*20mm/φ4
- Dimensions:30.5*27mm
- Weight:5.0g
ESC // BLITZ Mini 55A (LINK)
Specs:- Dimension: 35*42mm
- Mounting Holes: 20*20mm/Φ4mm
- Weight: 11.3g
- Supports 2-6S lipo input
- MCU:G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: IFLIGHT_BLITZ_G1
Package includes:1x Nazgul Evoque F5 (Squashed X or Deadcat pattern)
4x HQ 6X2.5X3 Tri-blade Props
2x sets of Battery Pads
4x Battery straps
1x Screws bag
